John Deere S140 48-Inch 22 HP V-Twin Hydrostatic Riding Lawn Tractor

Product Description

The John Deere S140 48-Inch 22 HP V-Twin Hydrostatic Riding Lawn Tractor combines dependable engine power, a wide cutting system, simple hydrostatic operation, and operator-focused comfort in a versatile residential lawn tractor.

Designed as part of John Deere’s 100 Series, the S140 is particularly attractive to homeowners who want the productivity of a 48-inch cutting deck without moving into a significantly larger or more complex mower platform.

Power comes from a 22 HP V-Twin gasoline engine. John Deere identifies the engine as model 44N677 (M44) with 44.2 cubic inches of displacement. Its overhead-valve design, full-pressure lubrication system, replaceable oil filter, and air cooling are designed to support dependable residential mowing performance.

The V-Twin arrangement provides smoother power delivery than many basic single-cylinder riding mower engines and gives the S140 useful power for mowing, normal mulching applications, and compatible lawn-care attachments.

At the center of the mower is a 48-inch John Deere mower deck. The wide cutting path lets the tractor cover substantially more ground per pass than smaller 42-inch lawn tractors, making the S140 a strong choice for homeowners who regularly maintain medium-to-large residential lawns. John Deere’s current product listing identifies the S140 with a 48-inch Edge™ mower deck.

The deck uses three rotary cutting blades, providing cutting coverage across the full 48-inch width. Cutting height can be adjusted from approximately 1 inch to 4 inches, allowing the operator to adapt mowing height to grass type, season, weather, and lawn conditions.

Driving the S140 is straightforward thanks to its hydrostatic transmission with side-by-side foot pedals. Instead of manually changing gears, the operator controls forward and reverse movement through dedicated pedals. This makes speed changes intuitive when maneuvering around trees, landscaping, flowerbeds, or other obstacles.

The S140 also features an electric PTO, allowing the mower deck blades to be engaged using an electrical control rather than a manual mechanical engagement system.

A rear-mounted 2.4-gallon gasoline tank provides fuel capacity suitable for extended residential mowing sessions. A mechanical fuel gauge can be viewed from the operator position, helping the user monitor remaining fuel without stopping to inspect the tank manually.

Operator convenience is enhanced by LED headlights, an hour meter, comfortable seating, accessible controls, and John Deere’s familiar open operator platform.

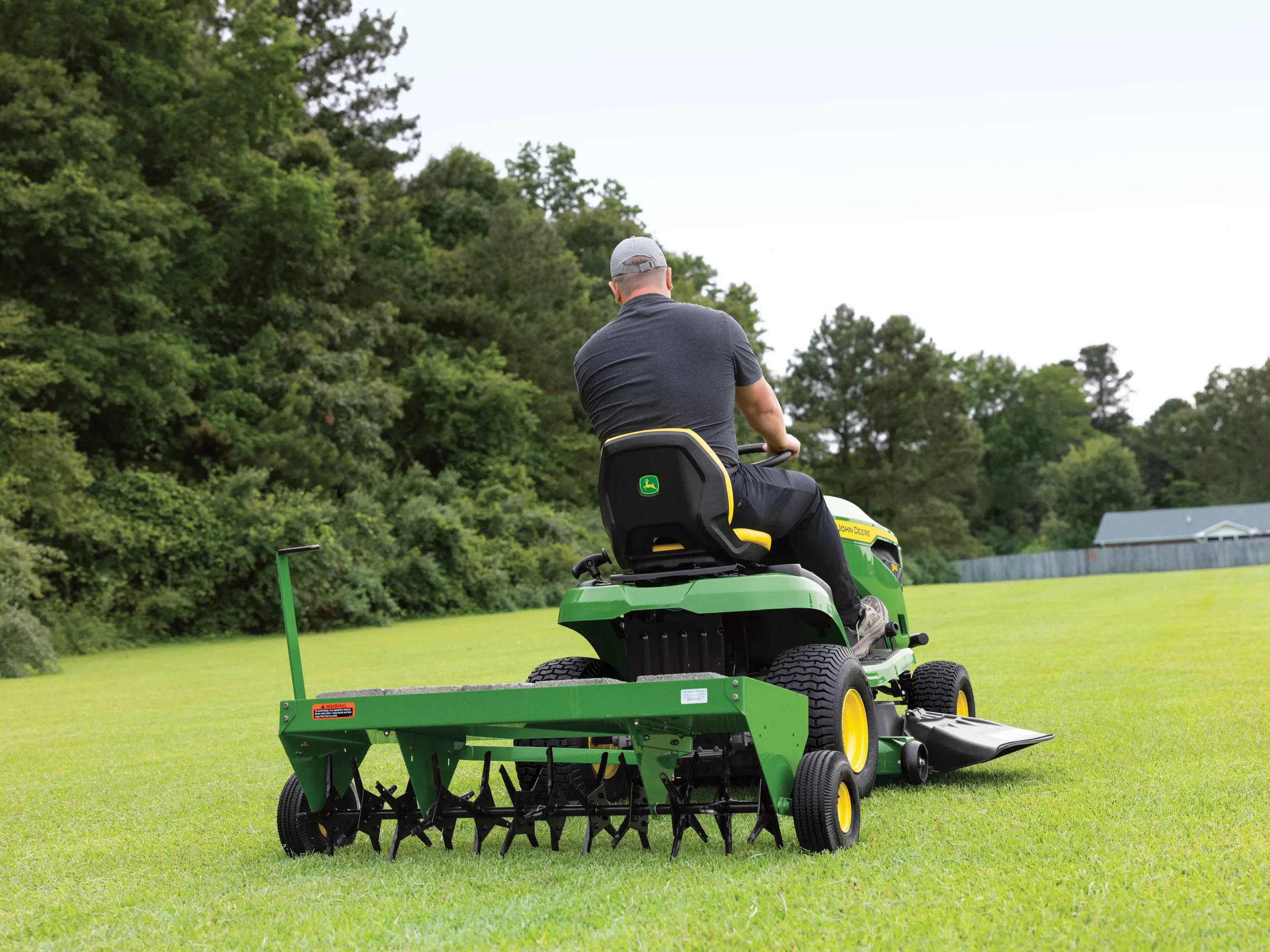

Beyond mowing, the S140 can serve as a multipurpose property-maintenance tractor. John Deere offers compatible attachments for lawn tractors including bagging systems, carts, snow-removal equipment, and other property-care accessories. These attachments are optional and are not included with the standard tractor.

For homeowners wanting a traditional riding lawn tractor with a wider deck, V-Twin power, intuitive pedal-controlled hydrostatic transmission, and the ability to use compatible lawn-care attachments, the John Deere S140 provides a strong combination of productivity and everyday usability.

Key Features

22 HP V-Twin Engine

A 22 HP John Deere-branded V-Twin engine delivers smooth and dependable power for regular residential mowing.

48-Inch Cutting Deck

The wide 48-inch mower deck covers more lawn with each pass, increasing mowing productivity compared with smaller deck configurations.

Three-Blade Cutting System

The 48-inch deck uses three rotary cutting blades to provide consistent coverage across the mowing width.

Hydrostatic Transmission

A hydrostatic transaxle removes the need for traditional gear shifting and allows smooth speed control.

Side-by-Side Foot Pedals

Separate forward and reverse pedals allow convenient speed and direction changes without manually shifting gears.

Electric PTO

The mower deck cutting system is engaged electrically for convenient blade operation.

Adjustable Cutting Height

Cutting height can be adjusted from approximately 1 to 4 inches for different lawn conditions.

2.4-Gallon Fuel Tank

A 2.4 U.S. gallon gasoline tank provides practical capacity for residential mowing sessions.

LED Headlights

Two standard LED headlights improve visibility in lower-light operating conditions.

Hour Meter

An integrated hour meter helps owners track operating time for maintenance scheduling.

Technical Specifications

These engine, transmission, fuel-system and electrical specifications are published on John Deere’s current S140 listing.

Cutting & Deck Configuration

Cutting Width: 48 Inches
Deck Type: John Deere Edge™ Mower Deck
Number of Blades: 3 Rotary Blades
Cutting Height Range: Approximately 1–4 Inches
Deck Engagement: Electric PTO
Deck Lift: Spring-Assisted Hand-Grip Lever
Standard Discharge Configuration: Side Discharge

The wide 48-inch deck is designed to increase mowing productivity by reducing the number of passes needed on larger residential lawns. John Deere specifies a 48-inch deck for the S140, while its 48-inch mower specification lists a three-blade cutting system and approximately 1-to-4-inch cutting range.

Transmission & Drive Configuration

The John Deere S140 uses a hydrostatic 2-wheel-drive transmission controlled by side-by-side foot pedals.

This system allows the operator to control travel speed and direction without selecting conventional transmission gears.

The pedal configuration is especially useful when:

• Mowing around landscaping
• Changing speed frequently
• Maneuvering around trees
• Backing away from obstacles
• Transitioning between open and confined lawn areas
• Performing routine property-maintenance work

Engine Configuration

Engine Power: 22 HP
Engine Model: 44N677 (M44)
Engine Layout: V-Twin
Valve Design: Overhead Valve
Cooling: Air-Cooled
Lubrication: Full-Pressure
Oil Filter: Replaceable
Fuel: Gasoline
Fuel Delivery: Pulse Pump & Carburetor

The V-Twin engine configuration is particularly useful for the larger 48-inch deck because it provides strong power delivery while maintaining smooth operation.

What’s Included

The standard John Deere S140 mower package includes:

• 1 × John Deere S140 Riding Lawn Tractor
• 1 × 22 HP V-Twin Gasoline Engine
• 1 × 48-Inch Mower Deck
• 3 × Standard Cutting Blades
• Hydrostatic Transmission
• Side-by-Side Forward & Reverse Pedal Controls
• Electric PTO System
• Standard Side-Discharge Chute / Deflector
• Operator Seat
• Steering Wheel & Installed Operator Controls
• 2 Standard LED Headlights
• 2.4-Gallon Fuel System
• Hour Meter
• Battery & Electric Starting System
• Owner / Operator Documentation
