Product Description

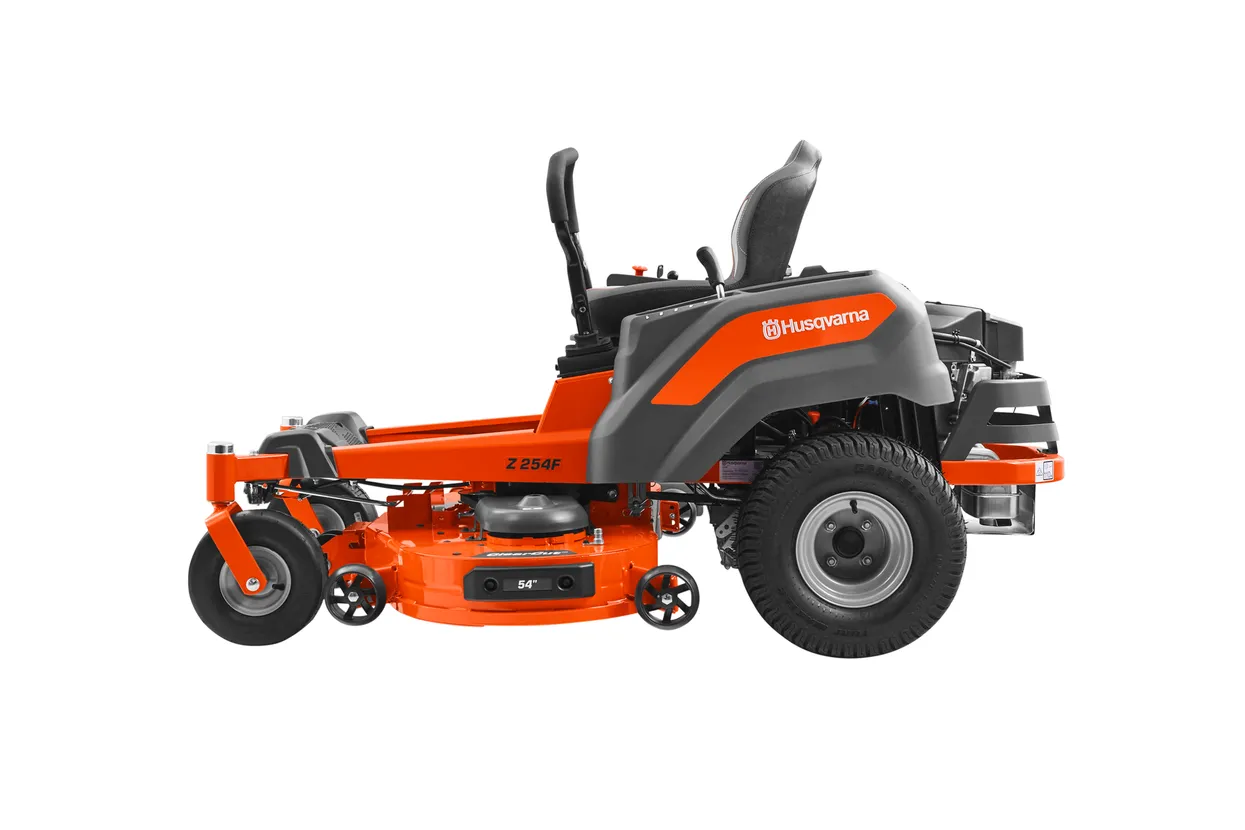

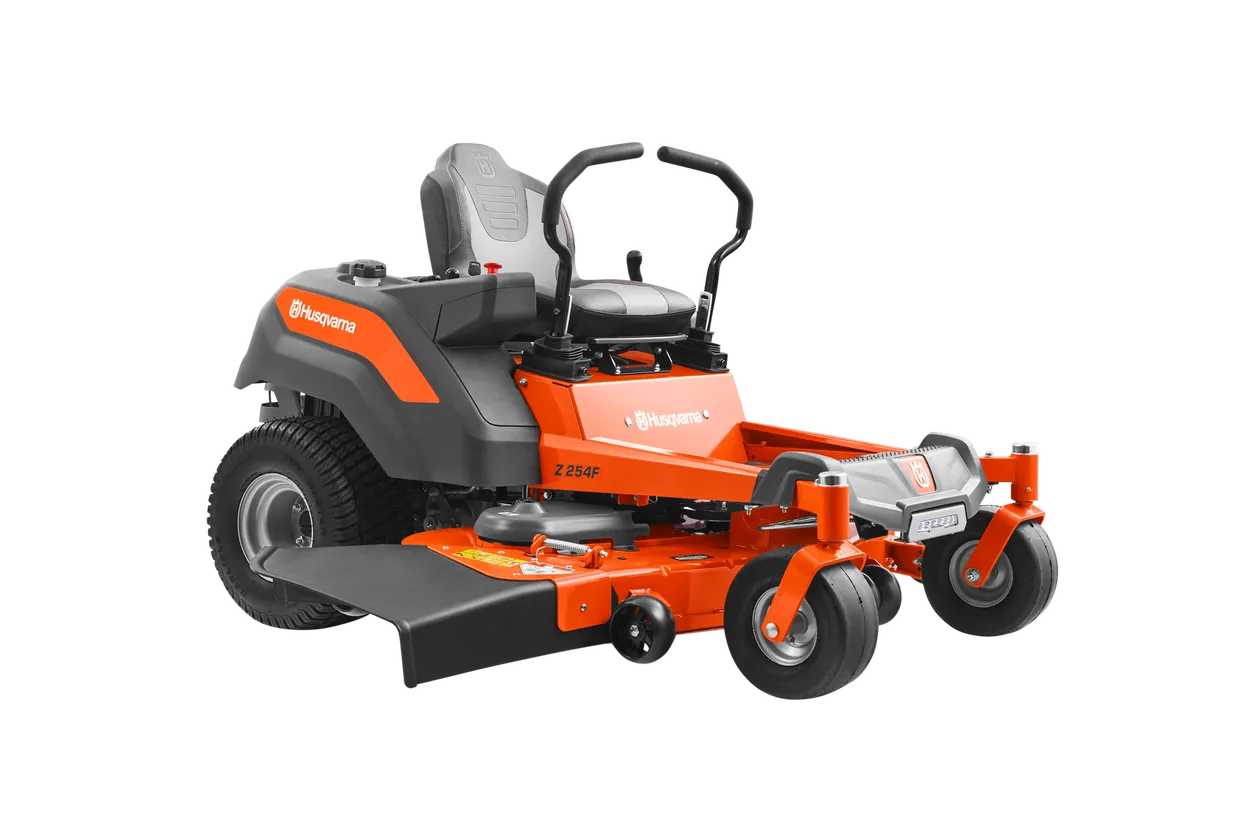

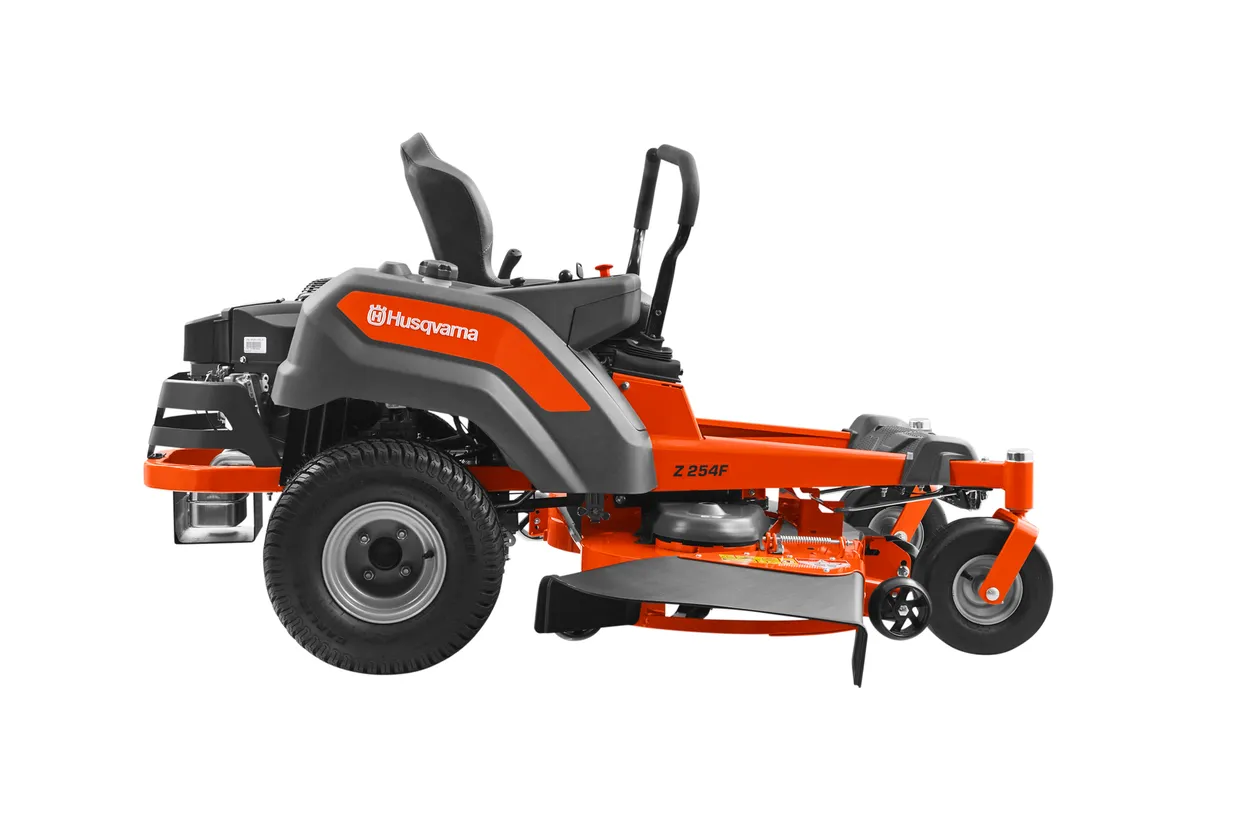

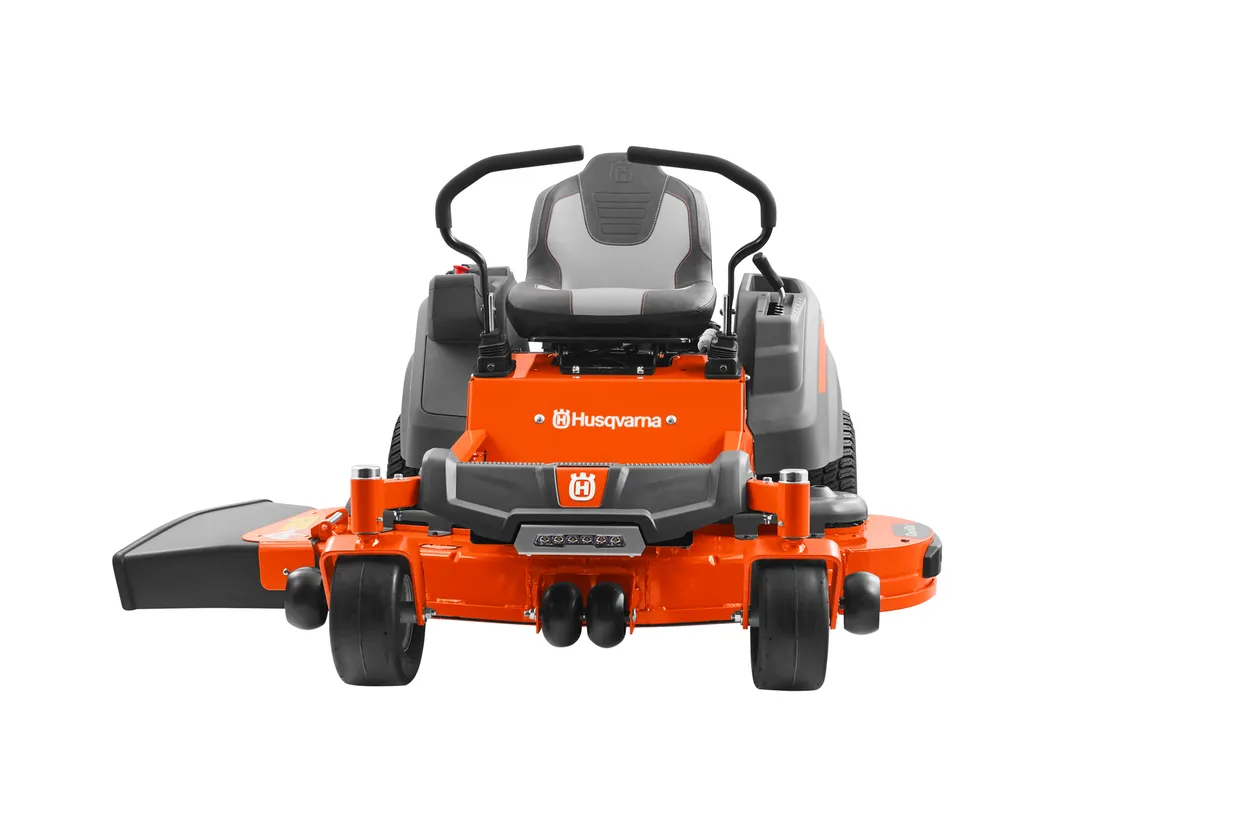

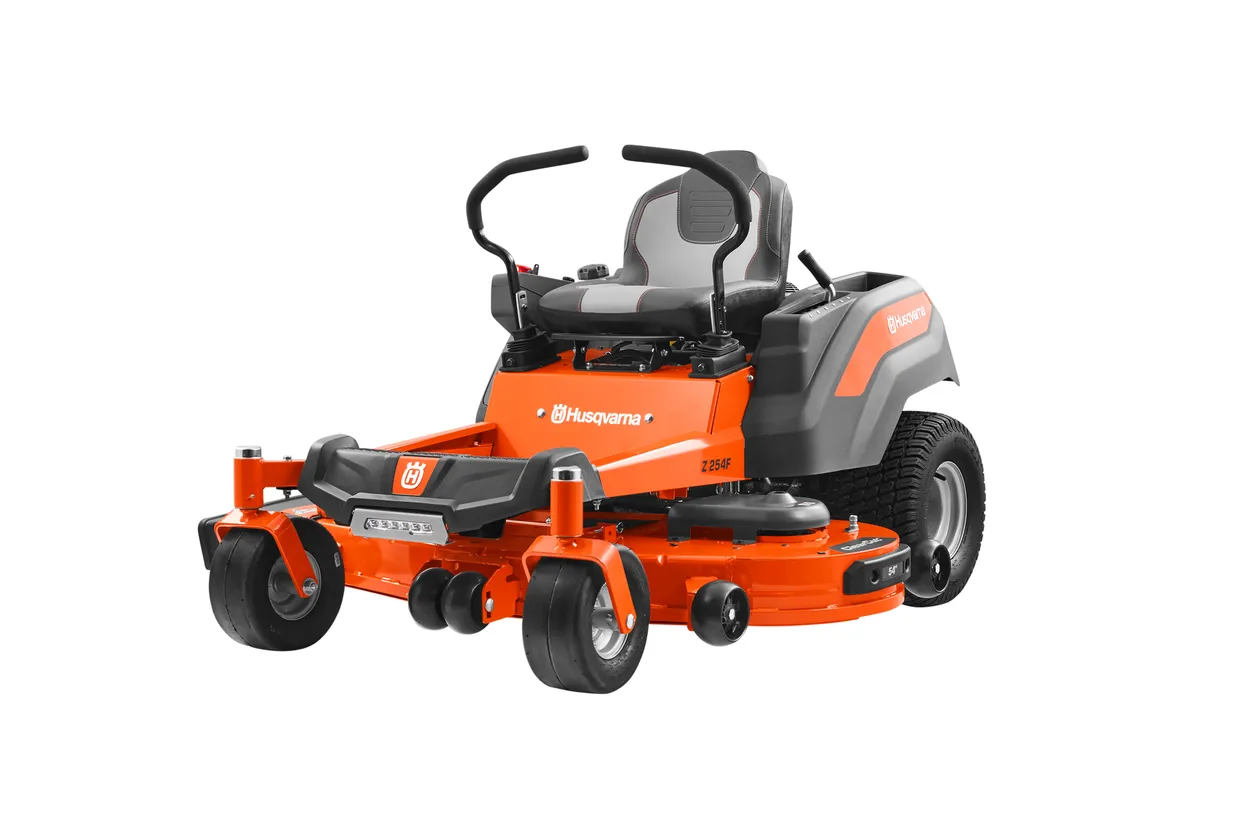

The Husqvarna Z254F Zero-Turn Riding Lawn Mower combines a large 54-inch ClearCut fabricated cutting deck, Kawasaki V-twin gasoline power and hydrostatic zero-turn drive in a residential mower designed for efficient lawn maintenance.

The current Z254F is powered by a 24 HP Kawasaki FR Series engine. Husqvarna lists engine displacement at 44.3 cubic inches, equivalent to approximately 726cc. The V-twin configuration provides the power required to drive both the mower’s hydrostatic system and wide 54-inch cutting deck.

The mower’s defining cutting feature is Husqvarna’s ClearCut™ fabricated deck. Unlike the stamped deck used on some other Z200-series configurations, the Z254F uses welded steel deck construction with a published thickness of 10 gauge. Husqvarna designed the deck around airflow management and cutting performance for side-discharge, mulching and grass-collection applications.

Power is transferred through a Hydro-Gear hydrostatic transmission, allowing independent control of the rear drive wheels using the two steering levers. This provides true zero-turn maneuverability and eliminates the need for conventional manual gear shifting. Maximum published forward travel speed is 6.5 MPH.

The deck-height system is manually operated and spring-assisted, reducing the effort required when adjusting cutting height. A removable foot plate provides easier access to the cutting deck for cleaning and routine service.

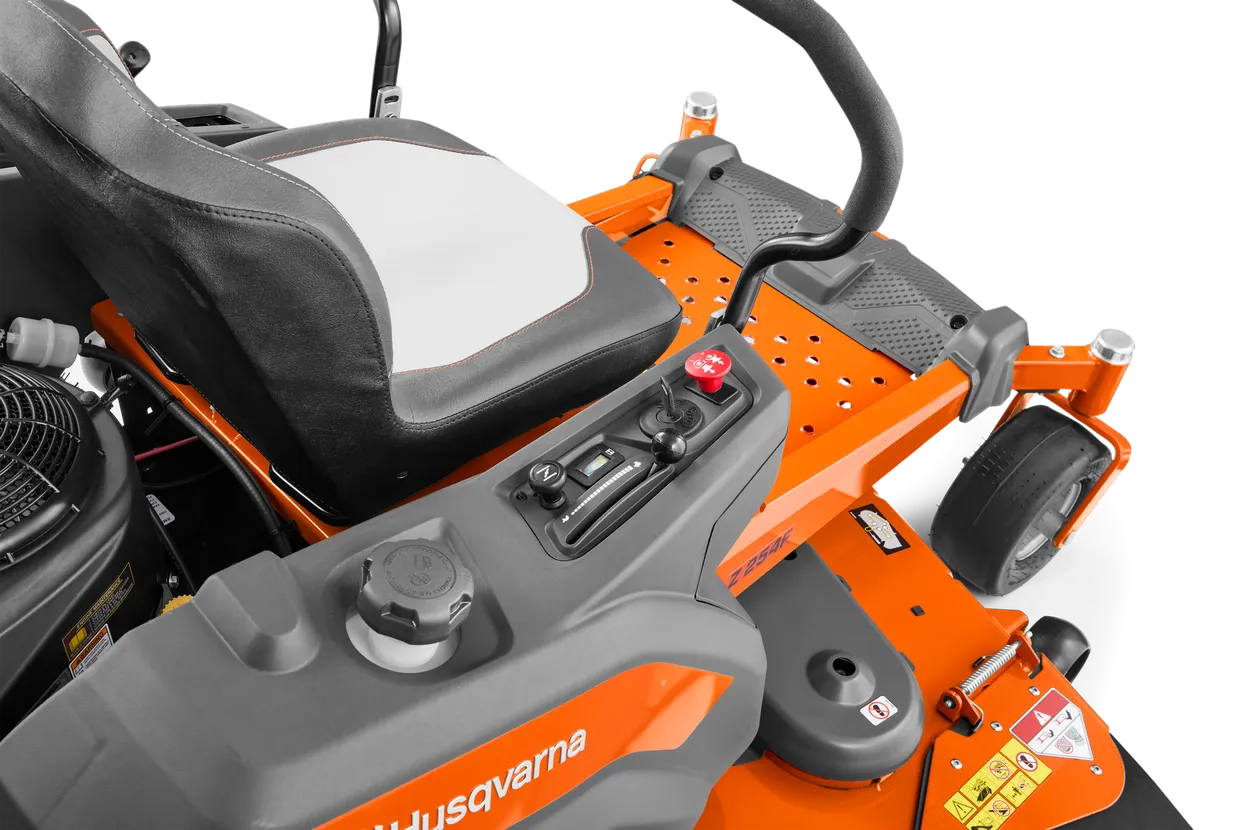

For operator convenience, the Z254F features a ventilated padded seat, easily accessible control panel and factory LED headlights. Husqvarna states that the LED system illuminates a larger area than traditional incandescent headlights used on comparable equipment.

The mower also incorporates an automatic parking-brake system. The brake engages and disengages automatically as the steering levers are moved into or out of the parking position.

Key Features

• Husqvarna Z200 Series zero-turn mower
• Exact model Z254F
• 54-inch cutting width
• ClearCut fabricated cutting deck
• 10-gauge steel deck
• Kawasaki FR Series engine
• 24 HP manufacturer-rated engine power
• Approx. 726cc displacement
• V-twin gasoline engine
• Electric starting
• Hydro-Gear transmission
• Hydrostatic zero-turn drive
• Up to 6.5 MPH forward speed
• Collecting capability
• Mulching capability
• Side-discharge capability
• Cast-iron spindle housings
• Greasable mandrels
• Deck wash port
• Powder-coated deck finish
• Spring-assisted manual deck lift
• Removable foot plate
• Automatic parking brake
• Ventilated padded seat
• LED headlights
• User-friendly control panel
• Rugged frame and caster construction
• Residential Z200-series platform

Technical Specifications

These values are taken from Husqvarna’s current Z254F specification table.

Engine Configuration

Kawasaki FR Series

The current Z254F uses:

Engine Brand: Kawasaki
Engine Family: FR Series
Engine Power: 24 HP
Displacement: 44.3 cu. in. / Approximately 726cc
Configuration: V-Twin

Husqvarna rates engine power according to the engine manufacturer’s SAE J1995 gross-power standard.

Important Engine Note

Some older retailer listings identify the Z254F as:

23 HP Kawasaki

while Husqvarna’s current U.S. product page lists:

24 HP Kawasaki.

For a current product page and Google Merchant Center feed, use the specification that matches the exact physical mower/SKU being sold.

For the current Husqvarna configuration:

24 HP is the manufacturer-published specification.

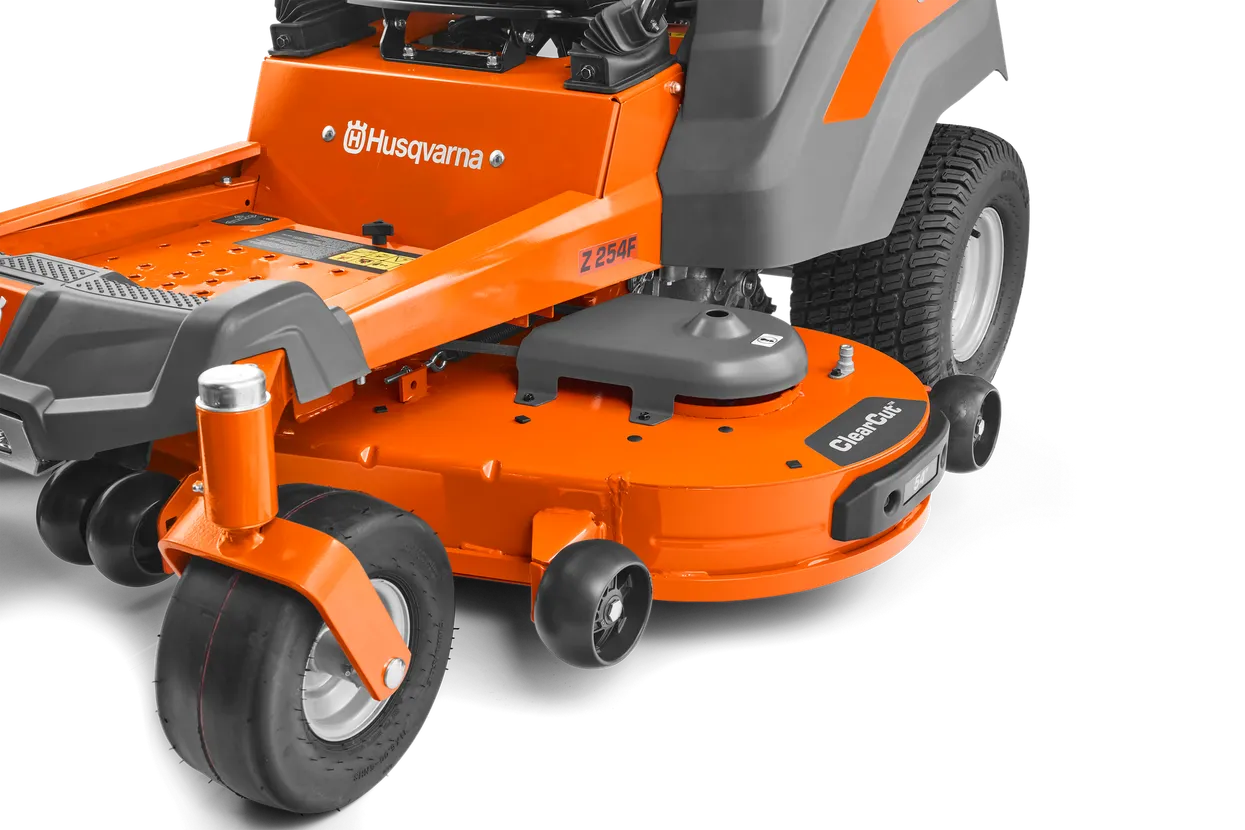

Cutting Deck Configuration

54-Inch ClearCut™

The Z254F uses:

54-Inch ClearCut Fabricated Deck

with:

10-Gauge Steel Construction

Husqvarna designed the deck for improved airflow and cutting performance.

Cutting Methods

The mower supports:

Side Discharge

Standard grass-clipping discharge configuration.

Mulching

A compatible mulch-kit configuration allows clippings to be processed and returned to the lawn.

Collection

A compatible grass-collection system can be installed.

Husqvarna officially lists the mower’s cutting methods as:

Collect / Mulch / Side Discharge.

Mulch Kit Configuration

The Z254F is compatible with a:

54-Inch ClearCut Mulch Kit

but the mulch kit should be treated as:

Optional / Sold Separately

unless specifically bundled with your mower.

Bagger Configuration

Husqvarna offers a compatible:

54-Inch Triple Bagger

for Z254F ClearCut-deck models.

The bagger is:

Not included with the standard mower

unless your retail package specifically adds it.

Transmission Configuration

Hydro-Gear Hydrostatic

Transmission Brand: Hydro-Gear
Transmission Type: Hydrostatic

Independent rear-wheel drive provides zero-turn maneuverability.

Forward Speed

0–6.5 MPH.

Automatic Parking Brake

The Z254F incorporates an:

Automatic Parking Brake System

that operates with movement of the steering levers.

Moving the levers into the parking position engages the brake, while moving them into the operating position releases it.

Deck Lift Configuration

The cutting-height system uses:

Manual Hand-Operated Deck Lift

with:

Spring Assistance

to reduce adjustment effort.

Spindle Configuration

The ClearCut deck uses:

Cast-Iron Spindles

and:

Greasable Mandrels

for serviceability.

Deck Wash Configuration

A factory:

Deck Wash Port

is included.

This provides a dedicated connection point for deck cleaning according to Husqvarna’s maintenance instructions.

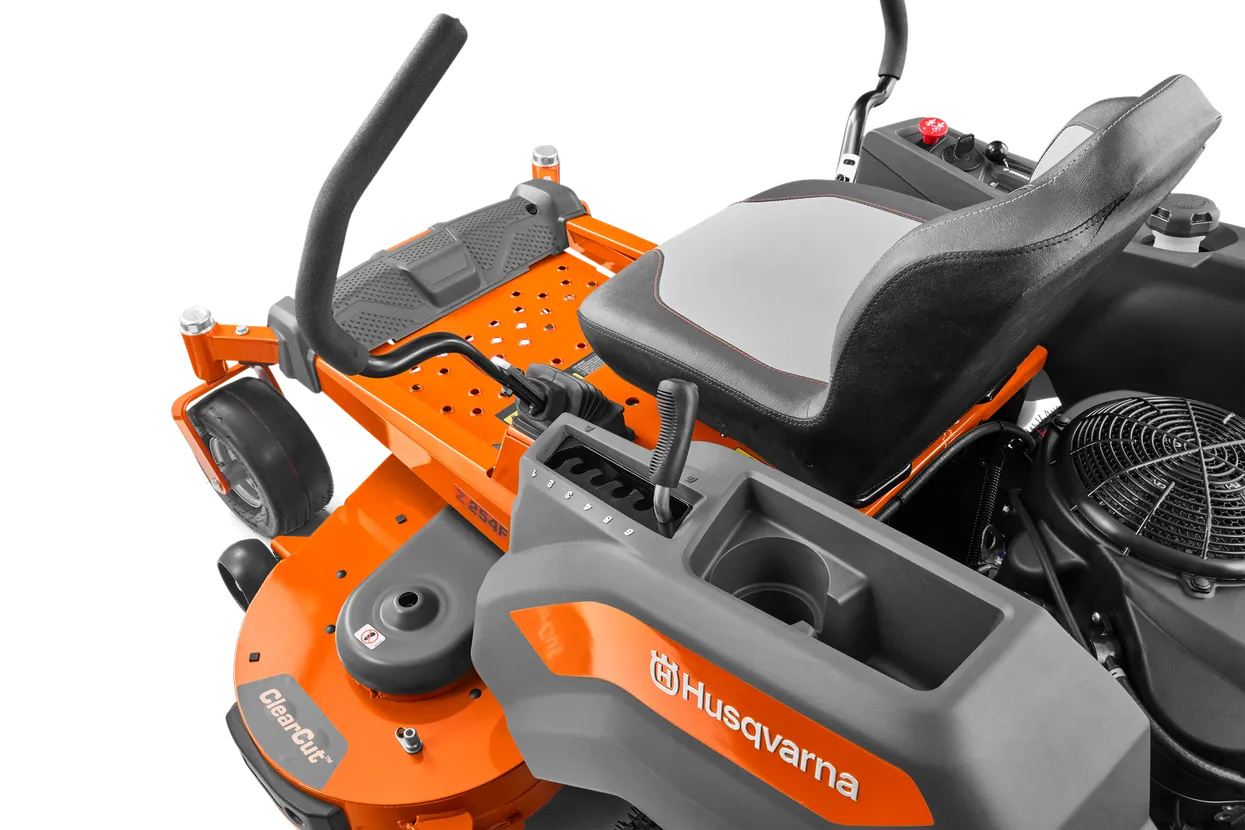

Operator Comfort

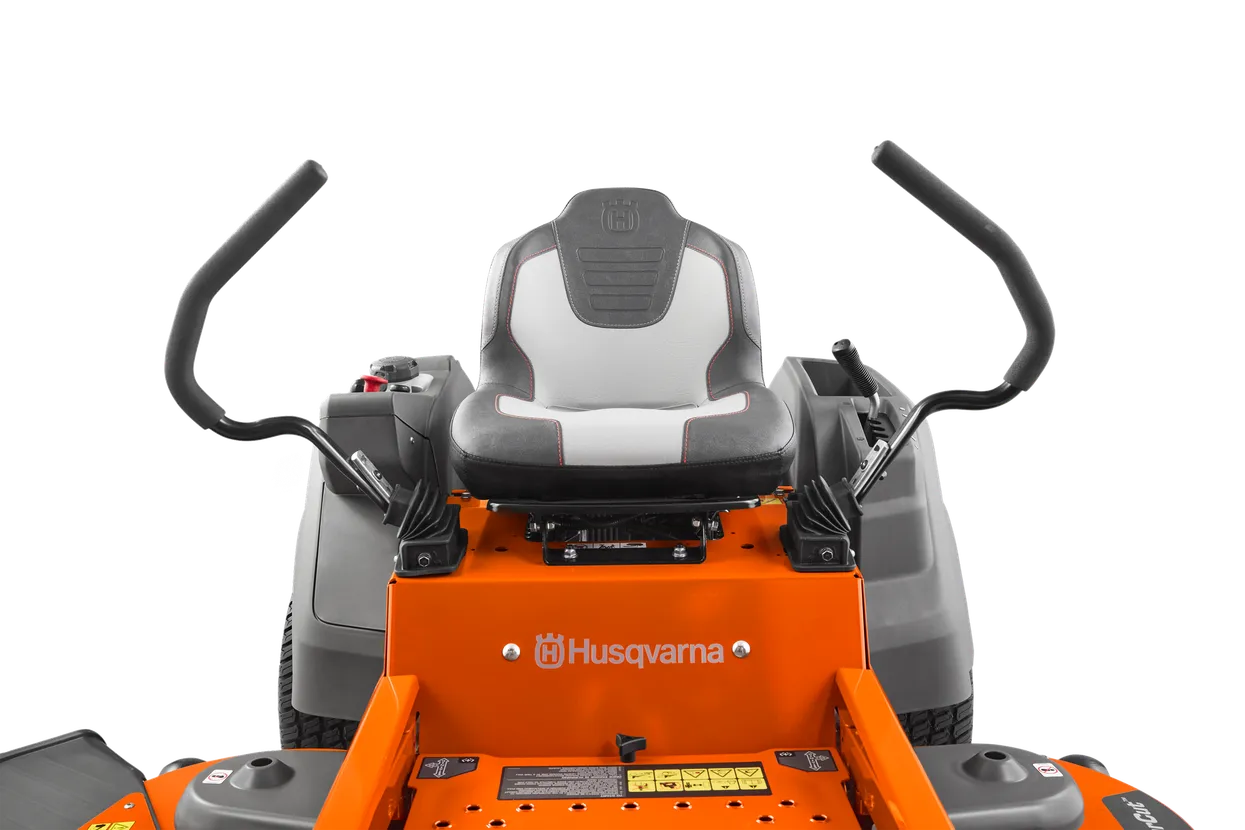

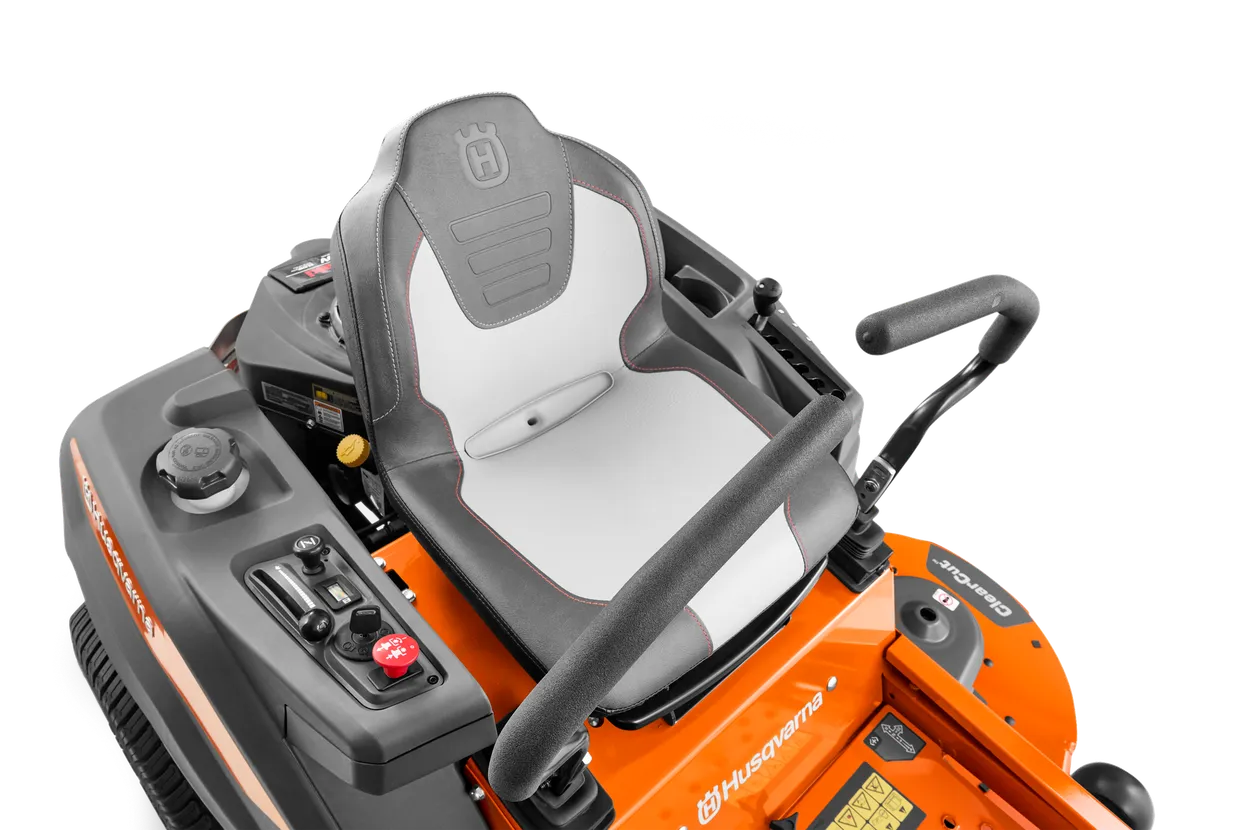

Ventilated Seat

The Z254F includes a:

Thick Padded Seat

with:

Open-Back Ventilation

designed to increase airflow around the operator.

LED Lighting

The mower includes:

Factory LED Headlights

for increased visibility.

Service Access

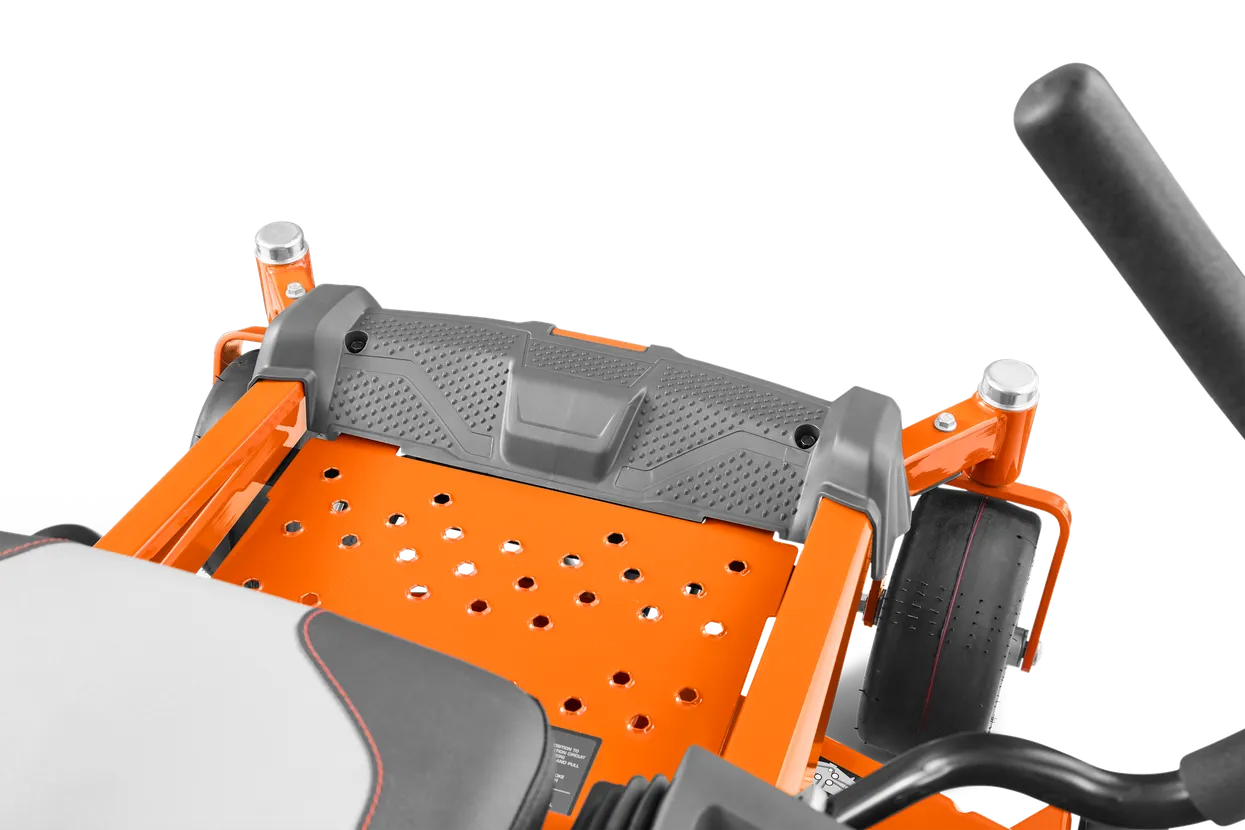

Removable Foot Plate

The operator foot plate can be removed for easier access to:

• Cutting deck
• Belt area
• Deck components
• Cleaning and maintenance points

Dimensions

Overall Length

75 in.

Width – Discharge Chute Down

67 in.

Width – Discharge Chute Up

56 in.

What’s Included

Standard Z254F mower configuration includes:

• 1 × Husqvarna Z254F Zero-Turn Mower
• Kawasaki FR Series 24 HP engine
• 54-inch ClearCut fabricated deck
• Hydro-Gear hydrostatic drive system
• Factory cutting blades
• Ventilated operator seat
• LED headlights
• Automatic parking-brake system
• Removable foot plate
• Deck wash connection
• Standard mower controls and safety systems
• Product documentation

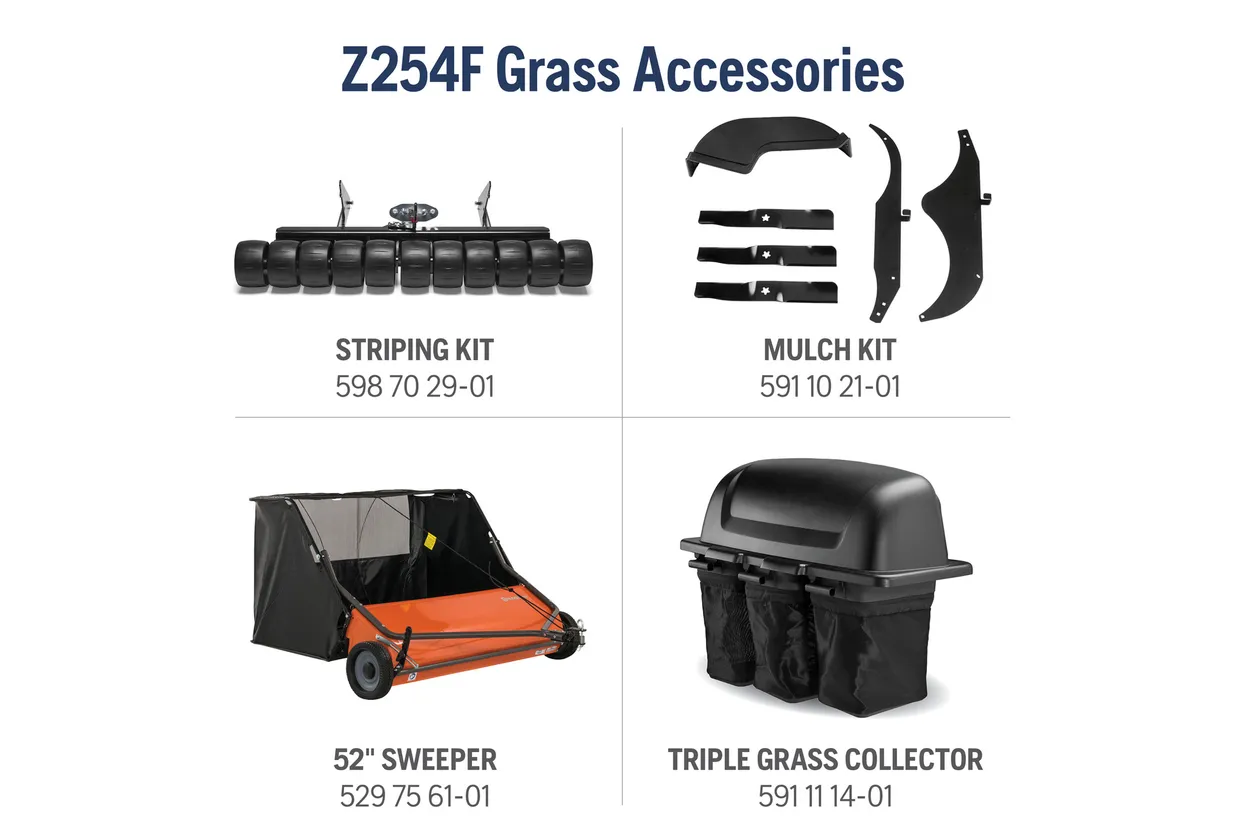

Optional Accessories – Not Included Unless Bundled

Compatible Husqvarna accessories include:

• 54-inch triple grass bagger
• 54-inch ClearCut mulch kit
• Tow-behind striping kit
• Lawn sweepers
• Zero-turn mower cover
• Hitch accessories
• Battery-maintenance accessories

These items should not be listed as standard package contents unless your retail bundle specifically includes them.

Warranty Information

Husqvarna 3-Year Limited Residential Manufacturer Warranty, subject to Husqvarna warranty terms, exclusions and proof-of-purchase requirements.
