Product Description

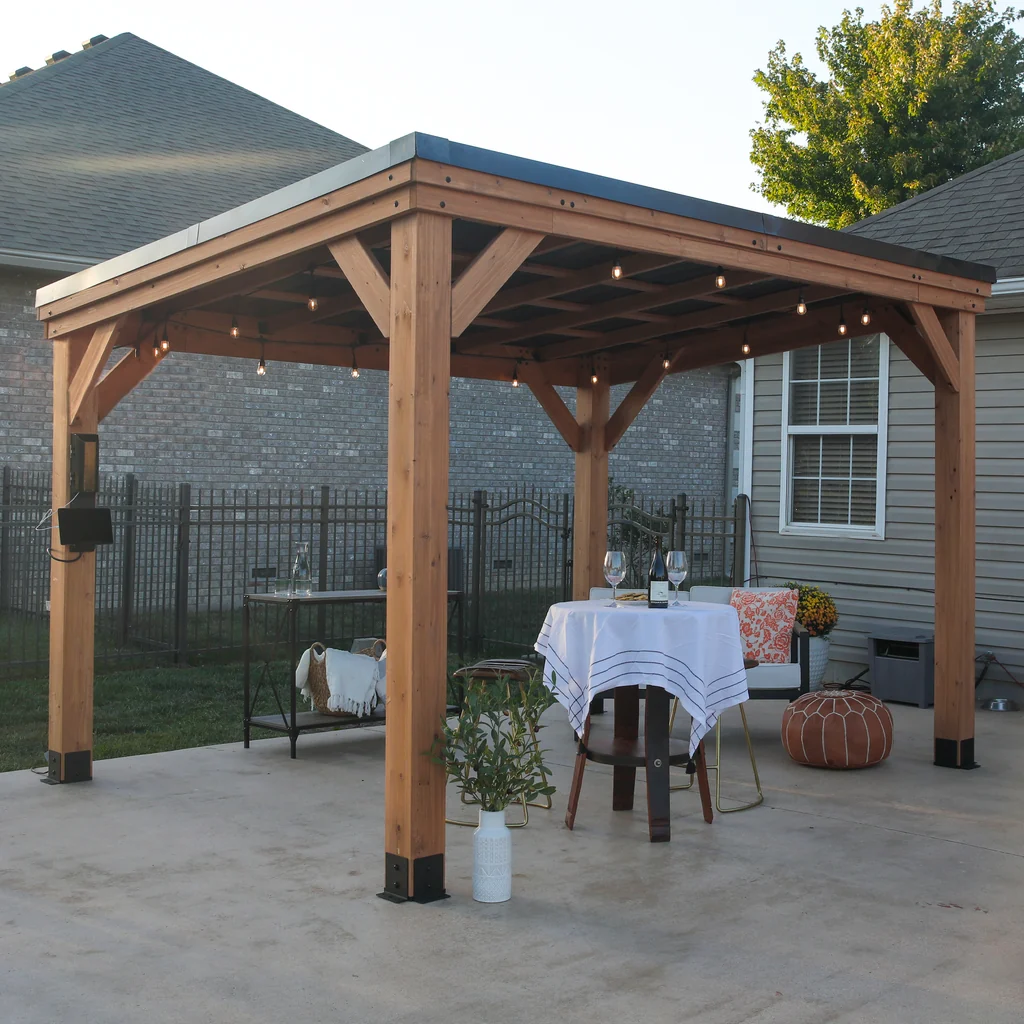

The Backyard Discovery 12×9.5 Arcadia Gazebo combines warm cedar construction with a clean contemporary roof design to create a permanent outdoor living structure for patios, decks and backyard entertaining areas.

Its frame is built from 100% cedar wood, including substantial 6-inch × 6-inch support posts designed to provide structural stability while maintaining the natural appearance of a timber gazebo.

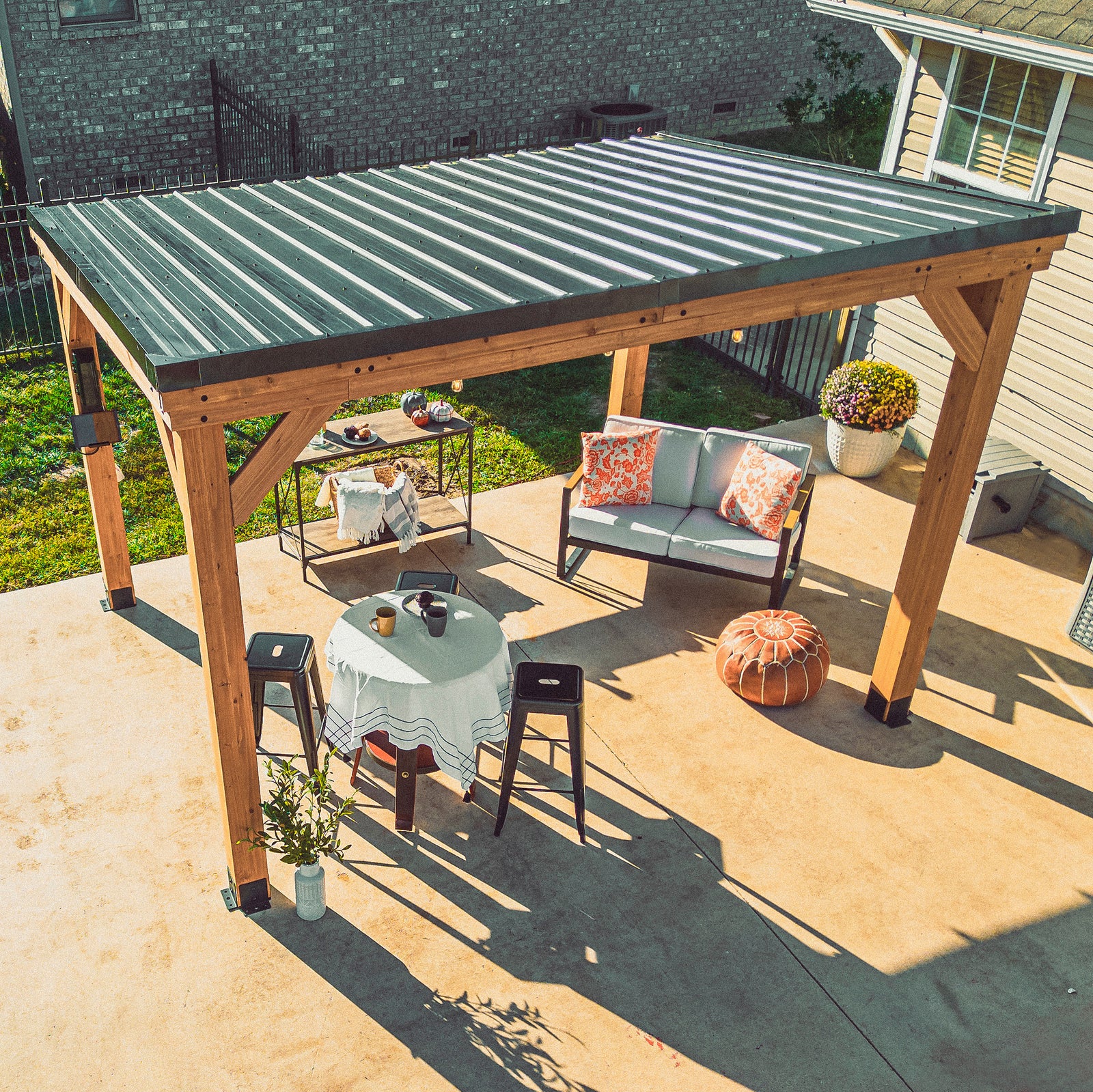

Above the cedar frame is a heavy-duty 29-gauge black steel roof. The roof uses a modern approximately 5-degree slope, providing the Arcadia with a streamlined architectural profile while helping direct rainwater away rather than allowing water to collect on a flat surface.

Backyard Discovery uses corrosion-resistant galvanized steel roof components and powder-coated metal brackets and anchors throughout the structure. The cedar components arrive pre-cut, pre-drilled and pre-stained to reduce the amount of preparation required before assembly.

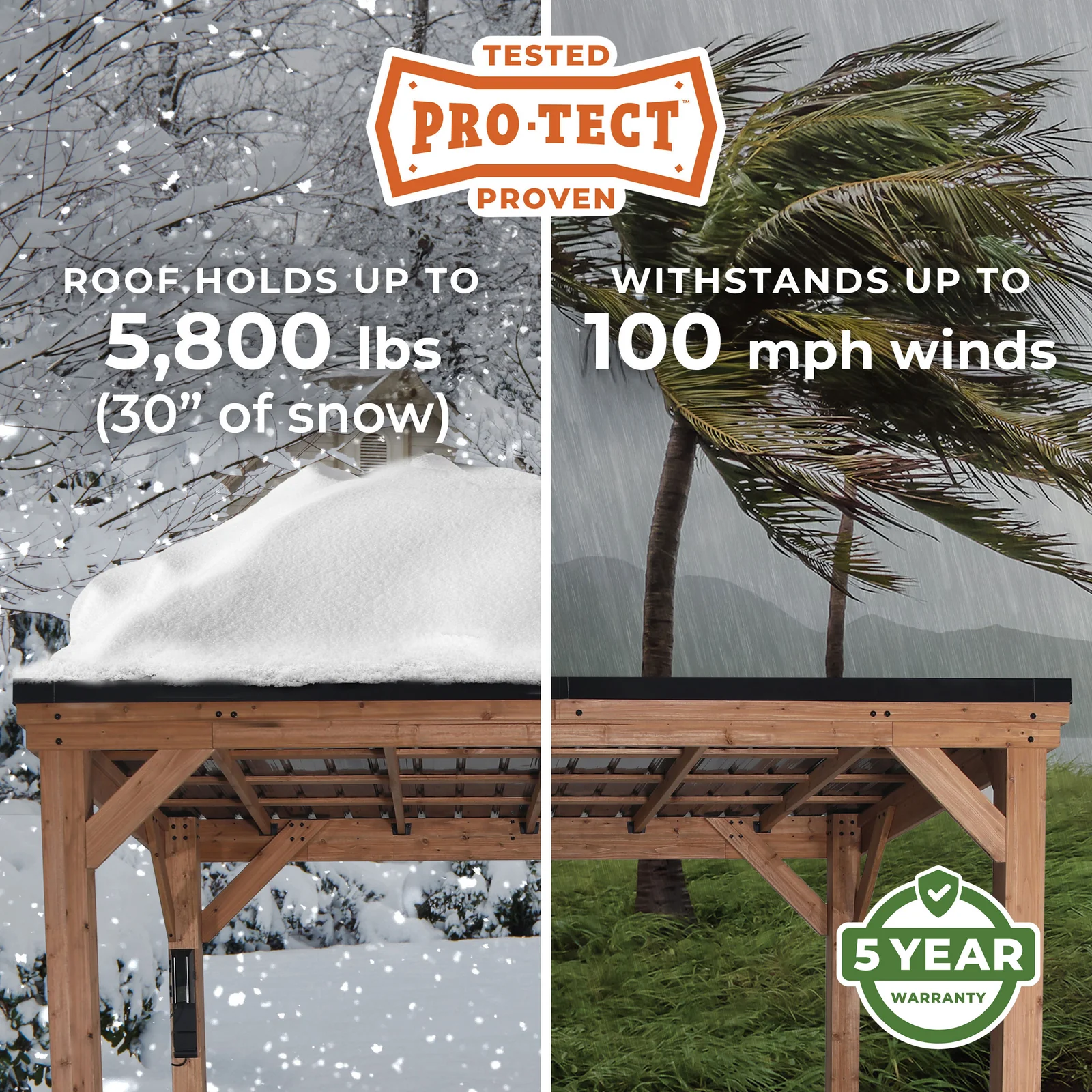

The Arcadia is part of Backyard Discovery’s PRO-TECT™ Tested & Proven gazebo range. When assembled and anchored according to the manufacturer’s instructions, Backyard Discovery rates the structure for wind speeds of up to 100 MPH and roof loads of up to approximately 5,800 pounds, equivalent to around 30 inches of snow under its test conditions.

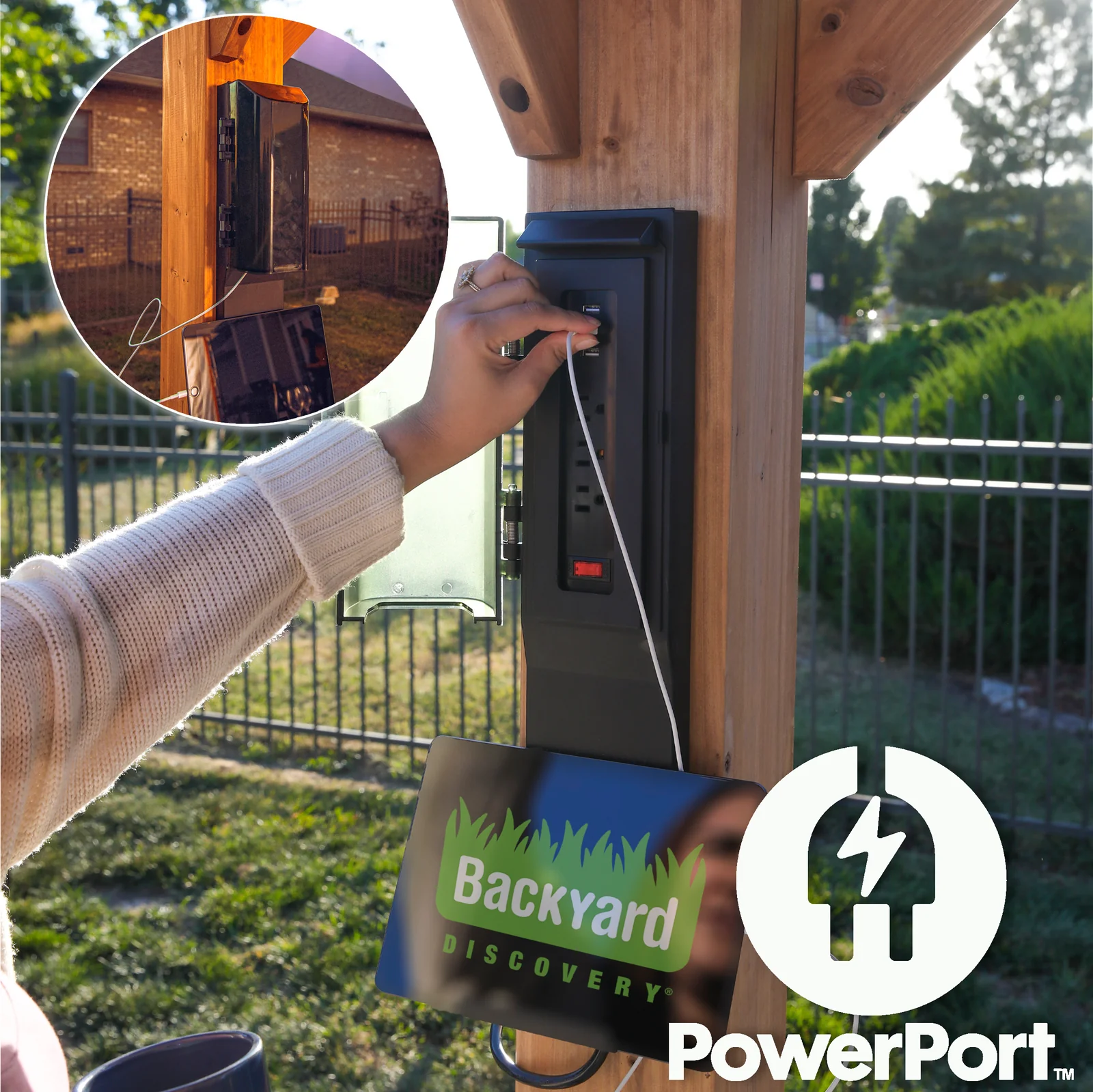

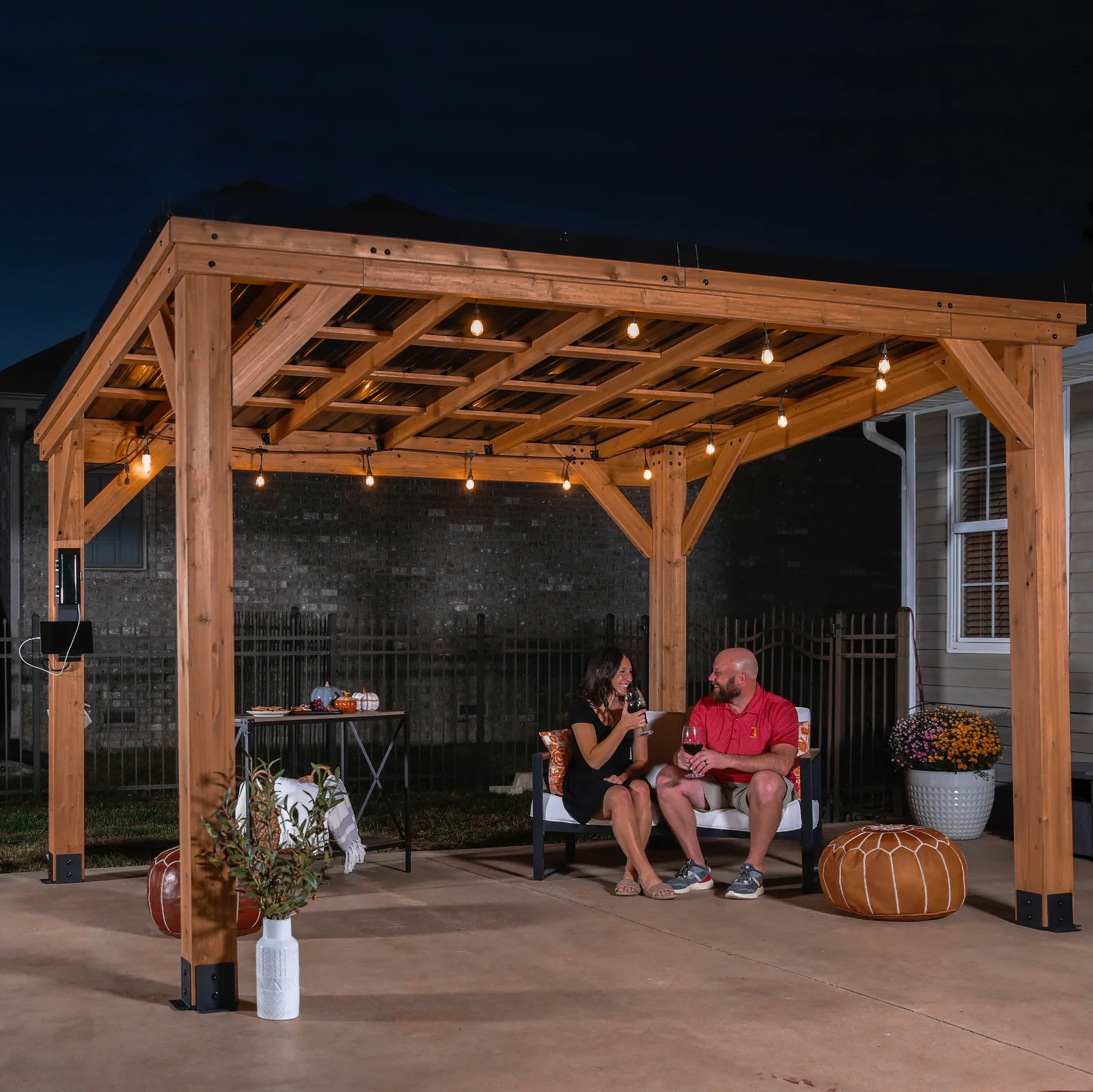

An integrated PowerPort™ adds electrical convenience to the outdoor space. The PowerPort includes three standard 120V electrical outlets and three USB charging ports and can be mounted to a gazebo post.

The PowerPort does not independently generate electricity; an appropriate external power source must be connected according to the manufacturer’s instructions.

With an overall footprint of approximately 145.7 inches wide × 114.17 inches deep, the Arcadia provides room for patio seating, dining furniture or other outdoor-living arrangements while retaining an open-sided design.

Key Features

• Exact Backyard Discovery Arcadia model
• Manufacturer Item #2306073Bcom
• Nominal 12 ft. × 9.5 ft. size
• 100% cedar wood construction
• Heavy-duty 6″ × 6″ cedar support posts
• Modern sloped-roof design
• Approx. 5° roof pitch
• 29-gauge black steel roof
• Galvanized steel roof construction
• Corrosion-resistant roof system
• Powder-coated steel brackets
• Powder-coated anchors
• Pre-cut cedar components
• Pre-drilled components
• Pre-stained wood
• Patented PowerPort electrical system
• Three 120V outlets
• Three USB charging ports
• PowerPort can mount to a structure post
• Tested for up to 100 MPH wind when properly anchored
• Tested for up to 5,800 lb. roof load
• Approximately 30-inch snow-load testing
• BILT 3D interactive assembly support
• Ready-to-assemble design
• 5-year manufacturer warranty

Technical Specifications

*Wind and snow-load ratings depend on assembly and anchoring according to Backyard Discovery instructions.

Dimensions

Overall Assembled Dimensions

Width: 145.7 in.
Depth: 114.17 in.
Height: 102.36 in.

That converts approximately to:

12.14 ft. W × 9.51 ft. D × 8.53 ft. H

The “12×9.5” product name is therefore the nominal size rather than an exact 144″ × 114″ assembled measurement.

Product Weight

The current manufacturer specification lists the Arcadia at approximately:

575.19 lb.

This is the assembled product reference weight published by Backyard Discovery.

Cedar Frame Configuration

100% Cedar Wood

The Arcadia uses:

100% Cedar Wood Construction

Cedar is used for:

• Vertical support posts
• Structural beams
• Roof-support components
• Decorative structural elements

The wood components are supplied:

• Pre-cut
• Pre-drilled
• Pre-stained

Natural wood appearance and stain saturation can vary between individual components.

Support Post Configuration

Heavy-Duty 6″ × 6″ Posts

The gazebo uses substantial:

6 in. × 6 in. Cedar Support Posts

to support the roof and structural frame.

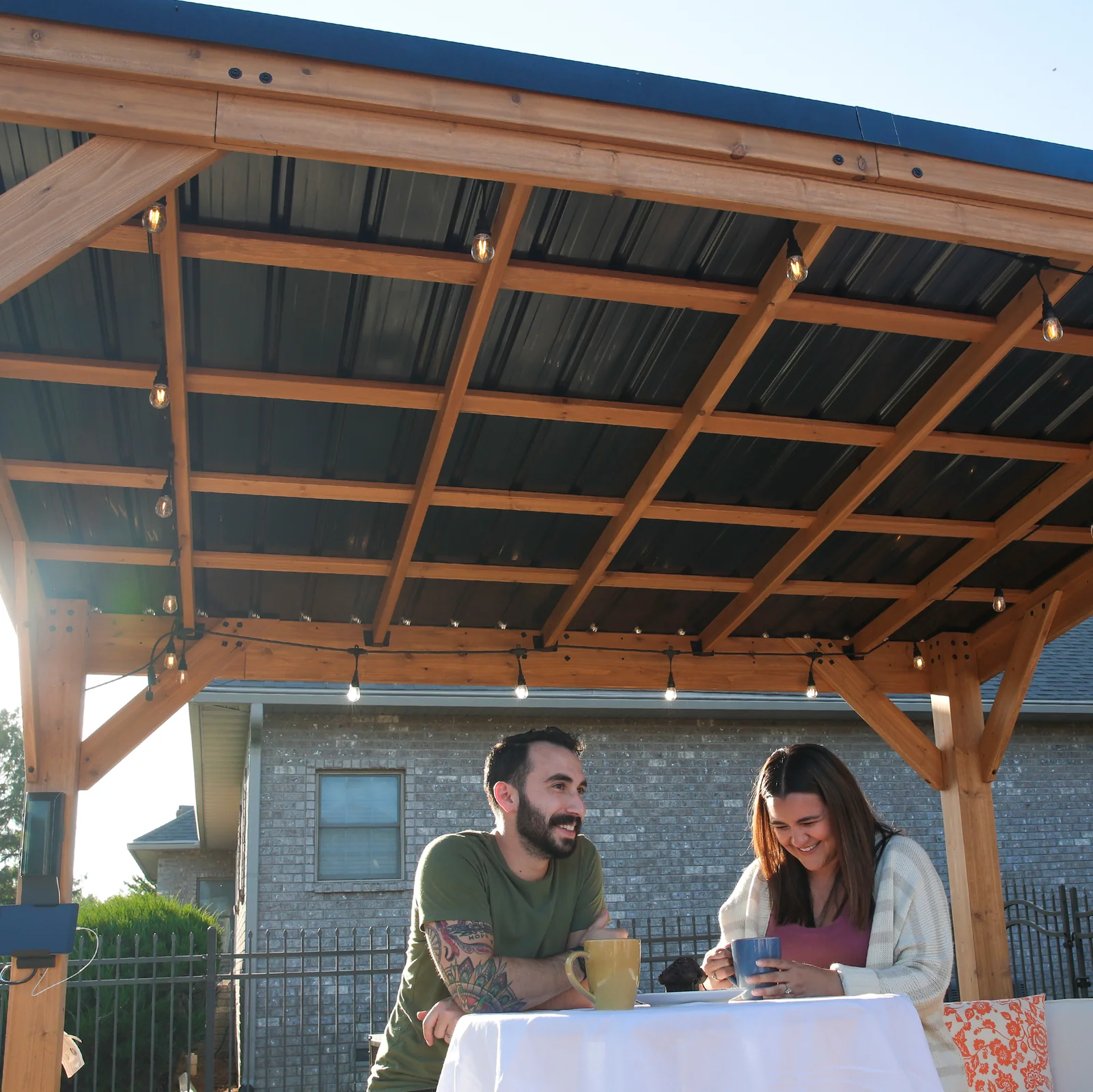

Roof Configuration

29-Gauge Steel Hardtop

The Arcadia uses a:

29-Gauge Black Steel Roof

with corrosion-resistant construction.

Unlike a fabric canopy, the roof forms a permanent hardtop structure intended for year-round outdoor installation.

Modern Sloped Roof

The Arcadia differs from traditional peaked gazebos by using a:

Modern Single-Slope Roof Design

with an approximately:

5° Roof Pitch

The slope gives the structure a more contemporary appearance while helping manage rainfall.

Weather-Rating Configuration

Wind Resistance

When anchored as specified by Backyard Discovery:

Up to 100 MPH

wind resistance is claimed under the manufacturer’s PRO-TECT testing.

Snow / Roof Load

Backyard Discovery also rates the gazebo for:

Up to 5,800 Pounds

of roof load, corresponding to approximately:

30 Inches of Snow

under its stated testing conditions.

These figures should always be accompanied by the manufacturer’s properly anchored / installed as directed qualification.

PowerPort™ Configuration

The Arcadia includes Backyard Discovery’s:

Patented PowerPort™

with:

Electrical Outlets

3 × 120V Outlets

USB Charging

3 × USB Ports

The PowerPort can be mounted to a convenient gazebo post.

Power Source

The PowerPort requires an:

External Power Source

The electrical supply itself is:

Not Included

with the gazebo.

Do not describe the Arcadia as having built-in mains electricity independent of an external connection.

Hardware Configuration

Structural metal components include:

• Galvanized steel hardware
• Powder-coated steel brackets
• Powder-coated anchors
• Corrosion-resistant steel roof components

These components complement the cedar frame and black roof.

Assembly Configuration

The Arcadia is supplied as a:

Ready-to-Assemble Gazebo Kit

Components are supplied:

• Pre-cut
• Pre-drilled
• Pre-stained

Backyard Discovery also supports assembly through the:

BILT® App

with interactive 3D step-by-step instructions.

Package Configuration

Backyard Discovery currently publishes three shipping cartons:

Box 1

114.09 × 22.28 × 7.99 in.
209.44 lb.

Box 2

114.09 × 22.28 × 7.99 in.
213.85 lb.

Box 3

115.94 × 36.34 × 2.09 in.
151.9 lb.

What’s Included

Standard Arcadia package includes:

• 1 × Backyard Discovery 12×9.5 Arcadia Gazebo
• Cedar structural posts
• Cedar beams and framing components
• 29-gauge black steel roof panels
• Steel roof-support components
• Galvanized hardware
• Powder-coated structural brackets
• Anchoring hardware supplied with the structure
• 1 × Patented PowerPort
• Three 120V outlets
• Three USB ports
• Factory assembly hardware
• Product documentation
• BILT 3D assembly support

Optional Accessories – Not Included Unless Bundled

Backyard Discovery currently offers optional accessories for the Arcadia including:

Mosquito Netting

Custom-fit mesh enclosure.

Gutter Kit

Matching 5-inch aluminum K-style gutter system with downspout components.

Professional Assembly

Manufacturer-supported assembly service is offered in eligible areas.

These should not be shown as standard included equipment unless your retail package specifically includes them.

Foundation & Anchoring

The gazebo must be:

Properly anchored according to the Backyard Discovery installation manual

to achieve the published wind and structural ratings.

The exact foundation preparation will depend on the installation site and applicable local requirements.

The gazebo’s published 100 MPH wind rating should never be shown without the anchoring qualification.

Warranty Information

Backyard Discovery 5-Year Limited Manufacturer Warranty, subject to manufacturer terms, exclusions and proper installation/anchoring requirements.
