Product Description

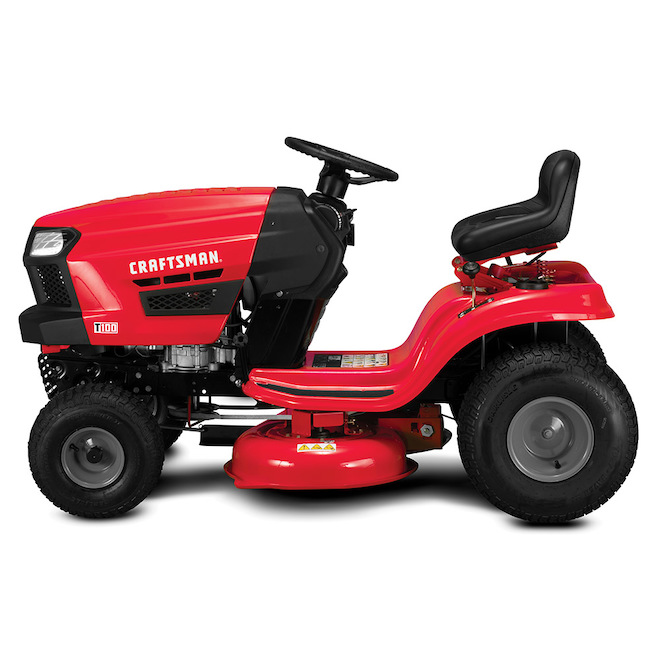

The CRAFTSMAN T100 36-Inch Riding Lawn Tractor is a compact front-engine mower designed for residential lawns where maneuverability and a narrower cutting deck are useful.

Power comes from an 11.5 HP Briggs & Stratton single-cylinder gasoline engine. The exact CMXGRAM201302 configuration is listed by Lowe’s with a 344cc displacement, providing power for the tractor’s rear-wheel-drive system and 36-inch cutting deck.

The T100 uses a 7-speed manual gear-drive transmission, allowing the operator to select among fixed travel-speed ranges rather than using a hydrostatic pedal system. Its compact chassis and 18-inch turning radius help the tractor maneuver around landscaping, yard obstacles and tighter residential spaces.

A 36-inch reinforced stamped-steel deck provides a narrower cutting footprint than typical 42- or 46-inch residential tractors. CRAFTSMAN specifically positions this deck as useful for fitting through many gates and confined yard areas.

The deck uses two cutting blades and provides a cutting-height range from 1.5 to 3.75 inches through five adjustment positions. Standard clipping management supports side discharge and mulching, while a compatible rear bagger can be fitted separately.

Operator features include a turn-key starting system, adjustable low-back seat, headlights, cup holder and ergonomically positioned controls.

The tractor uses 15-inch front tires and 20-inch rear Turf Saver-style tires, while its rear-wheel-drive layout and standard differential provide conventional lawn-tractor traction.

Key Features

• Exact current CRAFTSMAN Model CMXGRAM201302
• T100 residential lawn tractor
• 11.5 HP Briggs & Stratton engine
• 344cc single-cylinder configuration
• Electric turn-key starting
• 36-inch cutting width
• Reinforced stamped-steel deck
• 14-gauge deck specification
• Two cutting blades
• Five cutting-height positions
• 1.5–3.75-inch cut range
• Manual blade engagement
• Seven-speed gear-drive transmission
• Rear-wheel drive
• 18-inch turning radius
• Up to 5.5 MPH forward speed
• Mulching capable
• Side discharge
• Bagger capable
• Adjustable low-back seat
• Headlights
• Cup holder
• 15-inch front tires
• 20-inch rear tires
• 1.3-gallon fuel tank
• 3-year limited warranty

Technical Specifications

The CMXGRAM201302 specification page confirms the 344cc engine, manual/gear transmission, 36-inch deck, five cutting-height positions, 14-gauge deck, 1.3-gallon fuel tank and 490-pound listed weight.

Engine Configuration

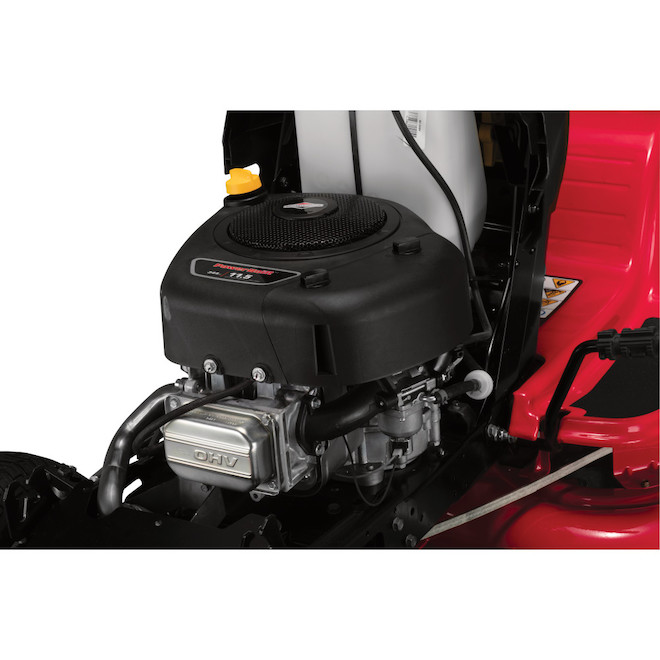

Briggs & Stratton 344cc Single-Cylinder

Engine Brand: Briggs & Stratton
Gross Power: 11.5 HP
Displacement: 344cc
Configuration: Single Cylinder
Starting: Electric / Turn-Key

CRAFTSMAN states the 11.5 HP rating as Briggs & Stratton gross horsepower measured under the applicable SAE standard.

Transmission Configuration

7-Speed Gear Drive

The T100 uses a:

7-Speed Manual / Gear Transmission

rather than a hydrostatic transmission.

The operator selects the appropriate speed range based on the mowing situation.

Drive Configuration

Drive Type: Rear-Wheel Drive

Maximum Forward Speed: Up to 5.5 MPH.

Cutting Deck Configuration

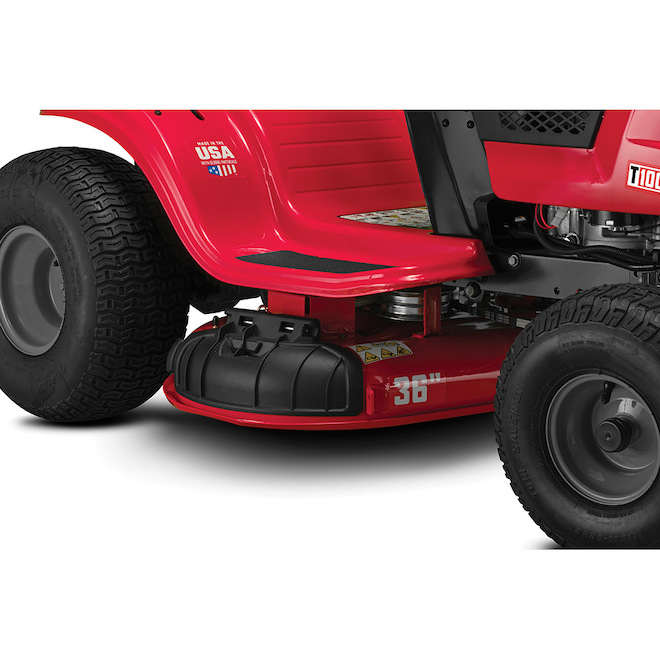

36-Inch Reinforced Stamped Deck

Deck Width: 36 in.
Deck Material: Steel
Deck Type: Reinforced Stamped
Deck Gauge: 14 Gauge
Number of Blades: 2

CRAFTSMAN highlights the 36-inch deck’s compact width as useful for tighter spaces and many residential gates.

Cutting Height Configuration

The T100 provides:

5 Height Positions

from:

1.5 Inches

to:

3.75 Inches.

Blade Engagement

The mower uses:

Manual PTO / Manual Deck Engagement.

Mulching Configuration

The current CMXGRAM201302 is listed as:

Mulching Capable

and Lowe’s identifies the mulching capability as included for this configuration.

Side-Discharge Configuration

The mower supports:

Side Discharge.

Bagger Configuration

The T100 is:

Bagger Capable

but the grass bagger itself is:

Not Included.

Lowe’s currently identifies matching bagger item:

1461307

for the CMXGRAM201302 configuration.

Maneuverability

18-Inch Turning Radius

CRAFTSMAN specifies an:

18-Inch Turning Radius

for maneuvering around landscaping and other obstacles.

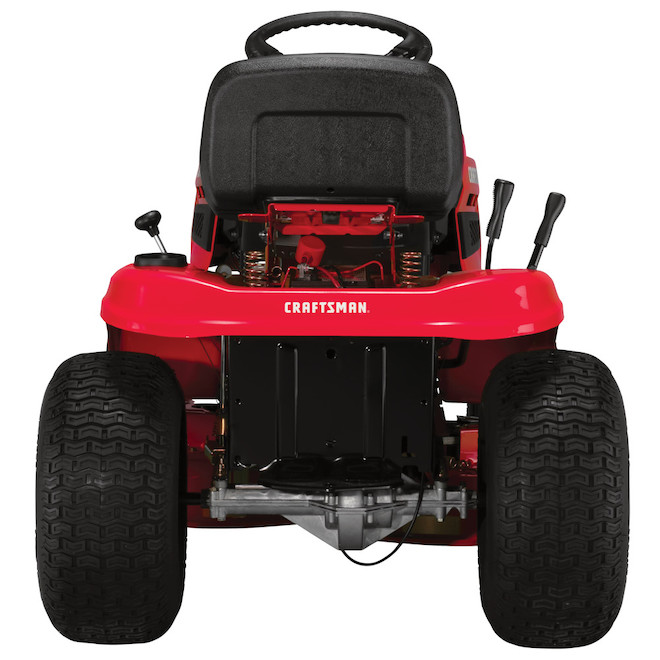

Tire Configuration

Front Wheels

15 in.

Rear Wheels

20 in.

The T100 uses lawn-oriented Turf Saver-style wheel/tire equipment.

Fuel Configuration

Fuel Capacity: 1.3 gal.

Engine Oil Capacity: 48 oz.

Operator Comfort

The standard tractor includes:

• Adjustable low-back seat
• Ergonomically placed controls
• Cup holder
• Headlights

These features are listed for the current CMXGRAM201302 configuration.

Dimensions & Weight

Overall Length

72 in.

Overall Width

36 in.

Product Weight

490 lb.

Cutting Width

36 in.

What’s Included

The standard mower package includes:

• 1 × CRAFTSMAN T100 Riding Lawn Tractor
• Briggs & Stratton 11.5 HP / 344cc engine
• 36-inch stamped-steel mower deck
• Two cutting blades
• Seven-speed gear-drive transmission
• Starting battery
• Standard side-discharge system
• Mulching capability
• Adjustable operator seat
• Headlights
• Factory mower controls and safety systems
• Product documentation

CRAFTSMAN’s official page identifies the included primary product as one CMXGRAM201302 riding mower.

Optional / Compatible Accessories

Compatible accessory categories include:

• Rear grass bagger
• Replacement blades
• Mulching blade set
• Drive belts
• Mulch-kit components
• Replacement oil filter
• Replacement spark plug

Lowe’s currently lists matching accessory identifiers for this exact CMXGRAM201302 configuration.

Warranty Information

CRAFTSMAN 3-Year Limited Manufacturer Warranty, subject to manufacturer terms, exclusions and qualifying purchase requirements.
