Product Description

The Toro TITAN MAX Havoc Edition Model 76602 is a 60-inch zero-turn riding mower based on Toro’s TITAN MAX residential platform, with a collection of Havoc-specific styling and equipment upgrades.

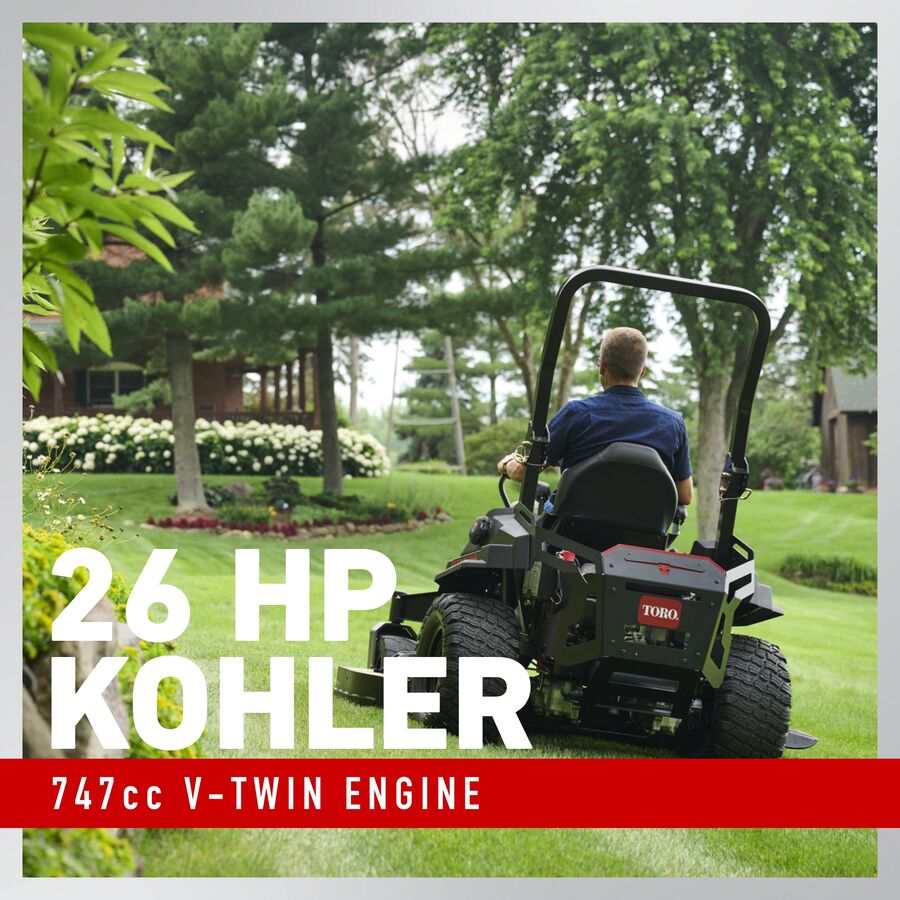

Power is supplied by a 26 HP Kohler 7000 Series gasoline engine with 747cc displacement and a canister-style Pro air-cleaner system. Toro rates the engine at 26 gross horsepower at 3,600 RPM under the applicable Kohler SAE standards.

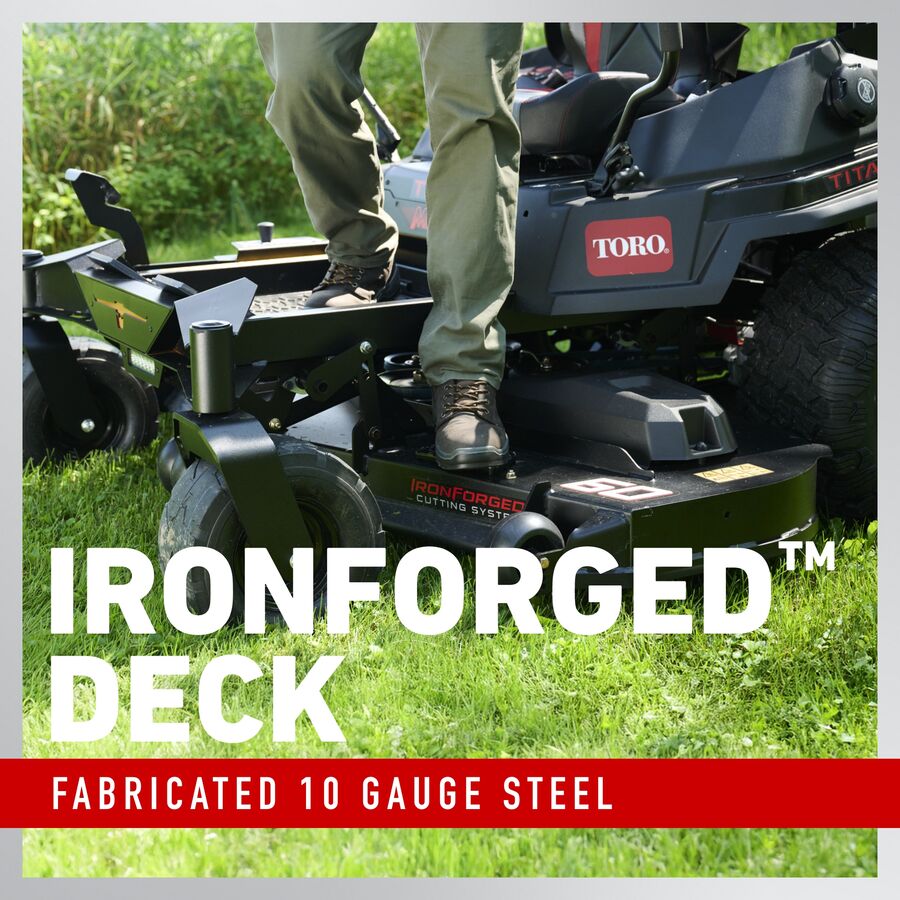

The mower uses a 60-inch IronForged fabricated cutting deck constructed from 10-gauge Grade 50 high-strength steel. A reinforced bull-nose leading edge adds structural protection to the front of the deck, while three cutting blades cover the full 60-inch cutting path.

Cutting height can be adjusted from 1.5 inches to 5 inches using Toro’s foot-operated deck-lift and drop-pin system. This allows deck position to be changed from the operator area without relying on a conventional hand-only lift mechanism.

The TITAN MAX Havoc uses a hydrostatic rear-wheel-drive system controlled through dual wrap-around steering levers. Toro publishes maximum forward mowing and transport speeds of up to 9 MPH for Model 76602.

A large 7-gallon / 26.5-liter fuel tank supports longer mowing sessions between refueling stops. The mower also includes a standard hour meter for tracking operating time and maintenance intervals.

Havoc Edition equipment includes distinctive two-tone aluminum alloy wheels, integrated LED task lights and unique exterior graphics/paint treatment, differentiating Model 76602 visually from the standard TITAN MAX.

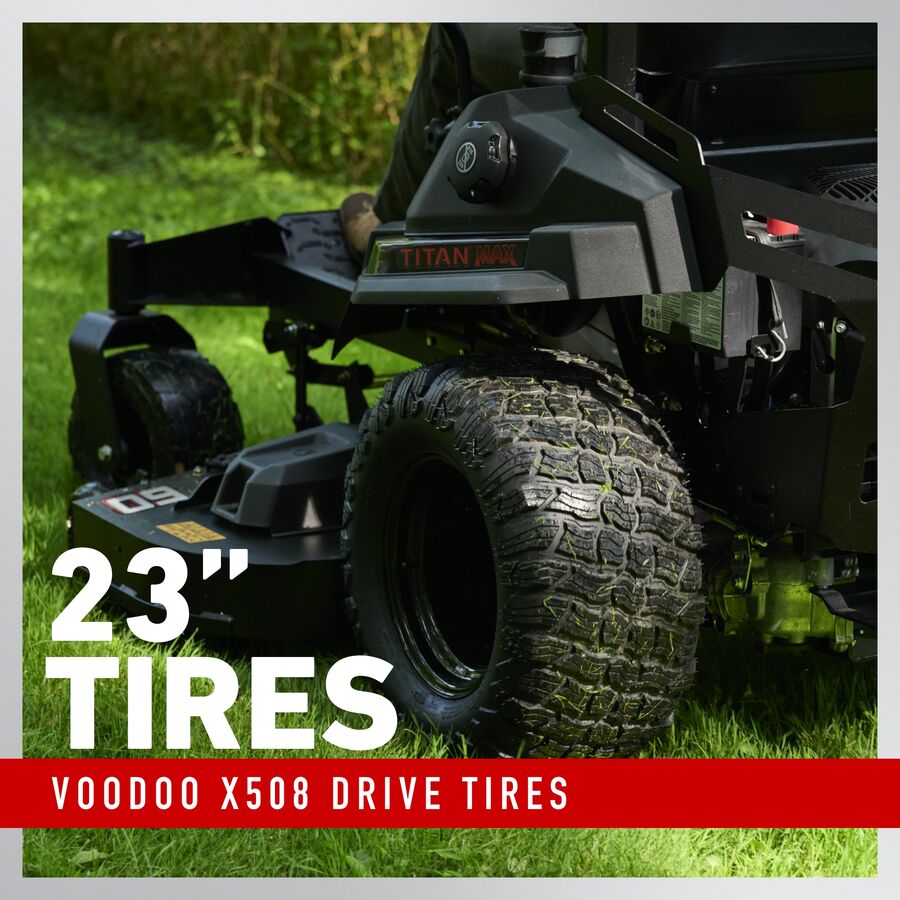

The mower rides on substantial 23 × 12-12 rear drive tires, paired with protective rear fenders. Toro also equips the machine with a step-through front area for easier access to and from the operator platform.

Operator equipment includes a 23-inch handcrafted high-back seat with armrests, storage areas, cup holder and Toro’s Pro Control Damper System integrated into the control setup.

A factory Roll-Over Protection System (ROPS) is standard equipment on Model 76602. The mower should be operated only in accordance with Toro’s operator manual and safety requirements.

Key Features

• Toro TITAN MAX Havoc Edition
• Exact Model 76602
• UPC 21038766027
• 26 HP Kohler engine
• 747cc engine displacement
• Kohler 7000 Series
• Pro / canister air cleaner
• Electric starting
• Hydrostatic transmission
• Rear-wheel drive
• Dual wrap-around control levers
• Up to 9 MPH forward speed
• 60-inch IronForged deck
• Fabricated 10-gauge construction
• Grade 50 high-strength steel
• Reinforced bull-nose deck edge
• Three cutting blades
• 1.5–5-inch height range
• Foot-operated height adjustment
• Drop-pin height selection
• Flexible rubber discharge chute
• 7-gallon fuel tank
• 23-inch aggressive rear drive tires
• Havoc-specific two-tone alloy wheels
• Integrated LED task lights
• High-back seat with armrests
• Pro Control Damper System
• Step-through front end
• Protective fenders
• Standard ROPS
• Standard hour meter
• Standard hitch bracket
• Standard cup holder
• 876-pound listed weight
• 4-year / 500-hour warranty

These are current Toro-published Model 76602 specifications and features.

Technical Specifications

Toro publishes these exact core specifications for Model 76602.

Engine Configuration

Kohler® 7000 Series 747cc

Engine Brand: Kohler
Series: 7000 Series
Displacement: 747cc
Gross Power: 26 HP
Rated Speed: 3,600 RPM
Starting: Electric
Air Cleaner: Pro / Canister Type

Toro states that the 26 HP figure is Kohler’s gross rating under SAE J1940/J2723 and that actual installed output can be lower depending on the mower configuration and operating requirements.

IronForged® Deck Configuration

60-Inch Fabricated Cutting Deck

Cutting Width: 60 in. / 152 cm
Construction: Fabricated
Steel: Grade 50 High-Strength Steel
Thickness: 10 Gauge
Blade Count: 3
Front Edge: Reinforced Bull-Nose

The IronForged deck is one of the defining structural components of the TITAN MAX platform.

Cutting Height Configuration

The mower provides:

1.5–5.0 Inches

of cutting-height adjustment.

Adjustment is handled through a:

Foot-Operated Lift System

with:

Drop-Pin Height Selection.

Drive Configuration

Hydrostatic Zero-Turn Drive

Transmission: Hydrostatic
Drive: Rear-Wheel Drive
Controls: Dual Wrap-Around Levers

Toro lists maximum forward ground and mowing speed at:

Up to 9 MPH / 14.4 km/h.

Havoc™ Edition Configuration

The Havoc Edition adds styling and equipment that distinguish it from the standard TITAN MAX, including:

• Two-tone aluminum alloy wheels
• Integrated LED task lighting
• Unique Havoc paint and graphics
• Aggressive 23-inch drive-tire presentation
• Protective fenders

Toro specifically markets these as distinguishing Havoc Edition characteristics.

Lighting Configuration

Integrated LED Task Lights

Model 76602 includes:

Integrated LED Task Lighting

as standard Havoc Edition equipment.

Tire Configuration

Rear Drive Tires

23 × 12-12

Toro describes the 23-inch rear tires as using a wide, aggressive tread intended to provide traction.

Fuel Configuration

7-Gallon Fuel Tank

Fuel Capacity: 7 U.S. gal.

Equivalent to approximately:

26.5 liters / 28 quarts.

Seat Configuration

The mower includes a:

23-Inch Handcrafted High-Back Seat

with:

Armrests

and:

Toro Branding.

Control Configuration

The operator station includes:

• Dual wrap-around steering levers
• Pro Control Damper System
• Hour meter
• Cup holder
• Storage areas
• Foot-operated deck-height control
• Electric start

Toro lists these features on the current Model 76602 page.

ROPS Configuration

Model 76602 includes a:

Standard Roll-Over Protection System (ROPS).

ROPS and the mower’s other safety systems should remain configured and used according to Toro’s operator documentation.

Hitch Configuration

A:

Hitch Bracket

is standard equipment.

Compatible attachments should only be used within Toro’s published compatibility and load limits.

Dimensions & Weight

Machine Weight

876 lb. / 397.3 kg

Shipping Box Dimensions

91 × 70 × 52.5 in.

or approximately:

231.1 × 177.8 × 133.4 cm.

Recommended Property Size

Toro categorizes Model 76602 for residential properties of:

Up to 7 Acres.

This is a manufacturer category rather than a guarantee of mowing time or suitability for every property.

What’s Included

Standard Model 76602 configuration includes:

• 1 × Toro TITAN MAX Havoc Edition Model 76602
• 26 HP Kohler 747cc engine
• 60-inch IronForged fabricated deck
• Three cutting blades
• Hydrostatic drive system
• Dual steering controls
• 23-inch rear drive tires
• Havoc Edition two-tone wheels
• Integrated LED task lights
• 23-inch high-back seat with armrests
• Standard ROPS
• Hour meter
• Hitch bracket
• Cup holder
• Rubber discharge chute
• Factory guards and safety equipment
• Manufacturer documentation

These core items are shown or listed on Toro’s current Model 76602 product page.

Optional Accessories – Not Included Unless Bundled

Toro’s current Model 76602 accessory list includes compatible items such as:

• 60-inch Recycler® Kit – Part 136-7490
• 54/60-inch Striping Kit – Part 147-8781
• TITAN MAX Powered Bagger – Part 79347
• Hardtop sun canopy
• Seat-suspension kit
• Mower cover
• Jack / jack-mount equipment
• Hydraulic service components

These accessories are separate from the standard mower unless a particular retail bundle explicitly includes them.

Bagger Configuration

Toro lists the:

Powered Bagger for TITAN MAX – Part 79347

with approximately:

6.42-bushel / 8-cu.-ft. capacity

as compatible accessory equipment. It is not part of the standard 76602 package.

Mulching Configuration

Toro lists a:

60-Inch Recycler Kit – Part 136-7490

for the TITAN platform.

The Recycler system is optional and should not be presented as factory-included with Model 76602 unless the retail package specifically adds it.

Warranty Information

Toro 4-Year / 500-Hour Manufacturer Warranty, subject to Toro warranty terms, use classification, exclusions and dealer requirements.
