John Deere Z345M 42-Inch 22 HP V-Twin Dual Hydrostatic Zero-Turn Riding Mower

Product Description

The John Deere Z345M 42-Inch 22 HP Dual Hydrostatic Zero-Turn Riding Mower combines responsive zero-turn maneuverability, strong V-Twin gasoline power, and John Deere’s 42-inch Accel Deep™ cutting system in a compact residential ZTrak™ platform.

Built for homeowners who want faster mowing and significantly better maneuverability than a traditional steering-wheel lawn tractor, the Z345M uses independently controlled hydrostatic drive wheels to deliver a true zero turning radius.

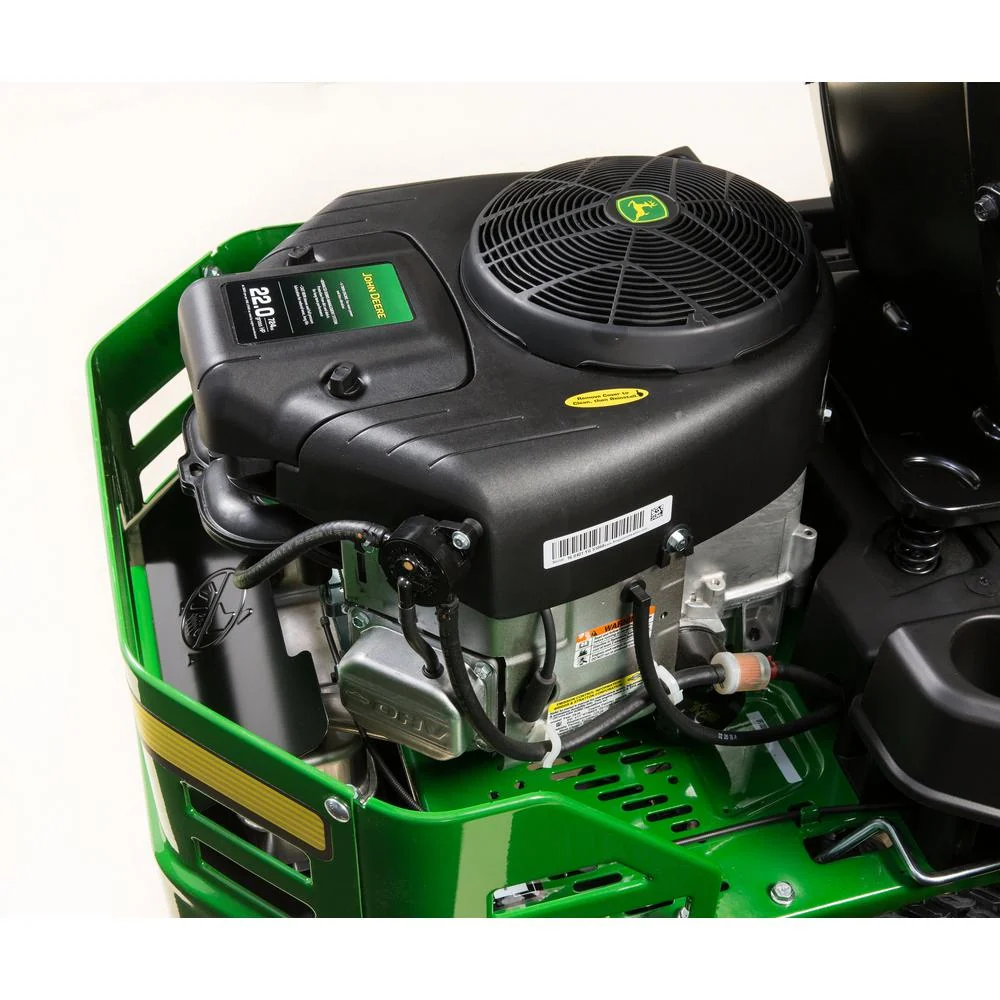

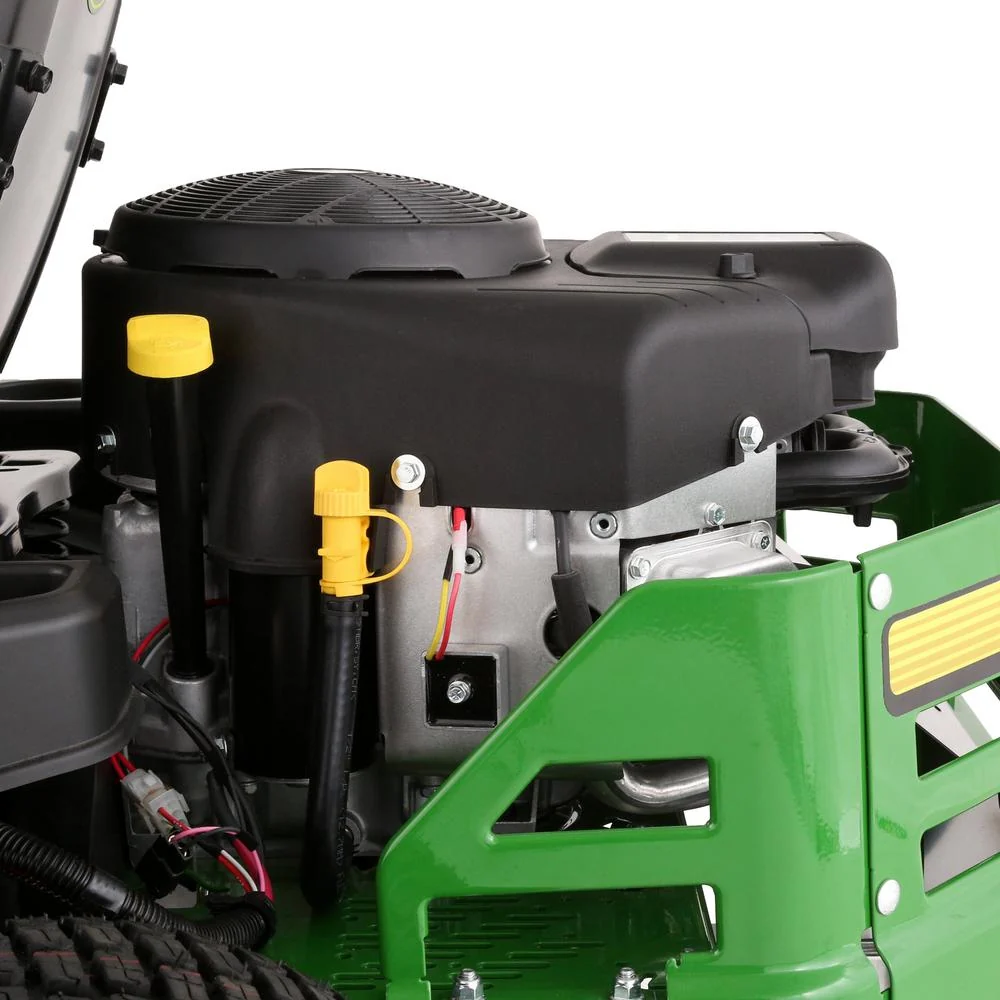

Power comes from a John Deere-branded 22 HP, 724cc V-Twin gasoline engine. The engine uses an air-cooled design with full-pressure lubrication, a replaceable oil filter, and a cast-iron cylinder liner to support dependable residential mowing performance.

The V-Twin configuration provides smooth power delivery for normal mowing as well as compatible mulching and material-collection applications.

At the center of the Z345M is the 42-inch Accel Deep™ 42A mower deck. John Deere designed this deep-deck system to provide efficient airflow beneath the deck, helping grass stand upright before cutting and allowing clippings to exit efficiently through the side-discharge opening.

The deck measures approximately 4.5 inches deep throughout its shell and uses a stamped-steel, flat-top design. John Deere states that this design improves clipping flow, cut quality, productivity, cleanliness, and overall versatility.

Cutting height can be adjusted from 1 to 4 inches in 0.25-inch increments, providing multiple settings for different grass types and seasonal mowing requirements. A deck transport position is also provided.

Power is transferred through dual Hydro-Gear EZT hydrostatic transmissions controlled by twin motion-control levers. Independent control of the rear drive wheels allows precise turns around trees, landscaping, fences, garden beds, and other obstacles.

The Z345M is capable of speeds up to 7 MPH forward and 3.5 MPH in reverse, giving it significantly faster mowing capability than many traditional residential lawn tractors.

Operator comfort is supported by an 18-inch medium-back seat with armrests and spring suspension, along with approximately 3 inches of no-tool seat-position adjustment. Twin adjustable motion-control levers allow the steering position to be tailored to the operator.

A flip-up foot platform provides improved access to key service areas, while a covered storage compartment and cup holder add everyday convenience.

With its compact 42-inch cutting system, true zero-turn steering, V-Twin engine, and 7-MPH mowing speed, the Z345M is particularly well suited to residential properties containing trees, landscaping, garden areas, and other obstacles.

Key Features

22 HP V-Twin Engine

A 724cc John Deere-branded V-Twin engine provides strong and smooth residential mowing power.

42-Inch Accel Deep™ Mower Deck

The 42-inch deck provides a practical balance between mowing productivity and compact maneuverability.

Dual Hydrostatic Transmission

Dual Hydro-Gear EZT transmissions independently control the drive wheels for true zero-turn handling.

Up to 7 MPH Forward Speed

High mowing speed helps reduce total mowing time on larger residential lawns.

Zero Turning Radius

Independent steering levers allow the mower to turn tightly around obstacles.

Electric PTO

An electric PTO clutch provides convenient mower-blade engagement from the operator station.

Adjustable 1–4 Inch Cutting Height

Cutting height can be changed in 0.25-inch increments across its approximately 1-to-4-inch range.

2.1-Gallon Fuel Capacity

The gasoline fuel system includes a 2.1 U.S. gallon tank and low-fuel indicator light.

18-Inch Seat with Armrests

An 18-inch seat with armrests and spring suspension helps improve comfort during longer mowing sessions.

Flip-Up Foot Platform

Provides easier access to service and maintenance areas.

Technical Specifications

These specifications come from John Deere’s official Z345M product and pricing documentation.

Cutting & Deck Configuration

Cutting Width: 42 Inches
Deck Model: Accel Deep™ 42A
Deck Construction: Stamped Steel
Deck Depth: Approximately 4.5 Inches
Cutting Height: 1–4 Inches
Height Adjustment Increments: 0.25 Inch
Standard Mode: Side Discharge
Deck Wash Port: Included
Mulching: Compatible with optional MulchControl™ system
Bagging: Compatible with optional material-collection system

John Deere designed the Accel Deep deck with a deep, flat-top shell and large discharge opening to maintain clipping flow and cutting performance at higher mowing speeds.

Transmission & Drive Configuration

Transmission Type: Dual Hydrostatic
Transmission Manufacturer/Series: Hydro-Gear EZT
Steering: Twin Motion-Control Levers
Maximum Forward Speed: 7 MPH
Maximum Reverse Speed: 3.5 MPH
Turning Radius: Zero

Each rear wheel is independently controlled, allowing the machine to pivot tightly and maneuver efficiently around landscaping and other lawn obstacles.

What’s Included

The standard John Deere Z345M configuration includes:

• 1 × John Deere Z345M ZTrak™ Zero-Turn Mower
• 1 × John Deere-Branded 22 HP / 724cc V-Twin Engine
• 1 × 42-Inch Accel Deep™ Mower Deck
• Standard Cutting Blades
• Standard Side-Discharge Chute
• Dual Hydro-Gear EZT Hydrostatic Drive System
• Twin Motion-Control Steering Levers
• Electric PTO Blade Engagement
• 18-Inch Medium-Back Seat
• Seat Armrests
• Spring Seat Suspension
• 12V Battery
• 2.1-Gallon Fuel System
• Low-Fuel Indicator
• Hour Meter
• Cup Holder
• Covered Storage Compartment
• Flip-Up Operator Foot Platform
• Mower Deck Wash Port
• Hose Connector for Deck Wash Port
• Owner / Operator Documentation
