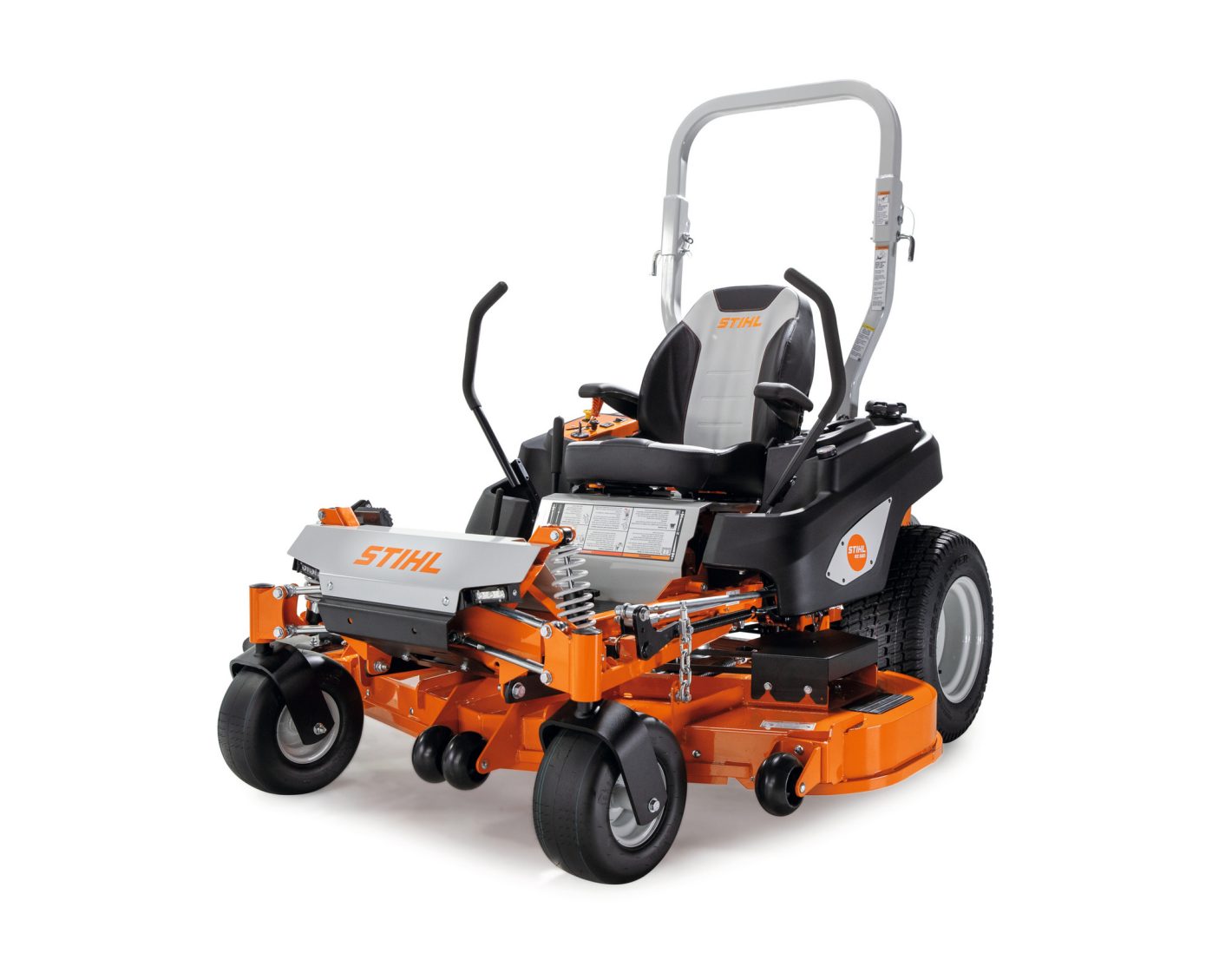

STIHL RZ 560 K 60-Inch Commercial Kawasaki Gas Zero-Turn Lawn Mower

Product Description

The STIHL RZ 560 K 60-Inch Commercial Zero-Turn Lawn Mower is engineered for professional mowing applications where productivity, durability, operator comfort, and precise maneuverability are essential.

Part of STIHL’s professional gasoline zero-turn lineup, the RZ 560 K combines a Kawasaki gasoline engine, commercial-grade hydrostatic drivetrain, wide 60-inch cutting system, and an advanced suspension platform designed for demanding mowing environments. STIHL specifically distinguishes the RZ 560 K from the standard RZ 560 by its Kawasaki engine configuration.

A 60-inch commercial-grade cutting deck allows the machine to cover a substantial amount of lawn with each pass, making it particularly suited to larger properties, commercial landscaping work, estates, institutional grounds, and other applications where mowing productivity is important.

Power is transferred through commercial-grade Hydro-Gear® ZT-3400 hydrostatic transaxles. These transaxles allow the mower to achieve forward ground speeds of up to 10 MPH and reverse speeds of up to 5 MPH, helping professional operators cover large areas efficiently.

True zero-turn steering gives each rear drive side independent control. This allows the mower to maneuver tightly around landscaping, trees, property boundaries, structures, and other common lawn obstacles.

One of the RZ 560 platform’s standout features is its sophisticated four-wheel suspension system. Independent front suspension uses upper and lower control-arm architecture connected to shock absorbers, while the rear uses a swingarm suspension system with shock absorbers. The system is designed to improve stability, ride comfort, and mower-deck consistency over irregular terrain.

The mower also incorporates mower-deck height compensation with the independent front suspension. This system helps the deck maintain a more consistent relationship with the mowing surface as the front suspension moves through its range of travel.

A foot-operated cutting-height system allows mowing height adjustments to be made from the operator position. This is particularly convenient for professional users moving between different turf conditions throughout the working day.

STIHL uses a two-belt mower drive system designed to reduce belt strain and flex. By distributing the mower-drive load, the system is intended to help belts run cooler and support longer service life.

Greaseable mower-deck spindles support routine serviceability, while the flip-up floor pan provides improved access to deck and service areas.

Operator comfort is supported by a deluxe seat with armrests, integrated cup holders, dual USB-A charging ports, and the suspension system. A dual-function hour meter tracks total operating time and mowing hours to support scheduled maintenance.

The mower also includes a folding Roll Over Protection System (ROPS). STIHL incorporates polyurethane blocks into the system to reduce rattling, while the folding design simplifies transport and storage.

A rear trailer hitch further expands the mower’s property-maintenance versatility when paired with compatible separately sold attachments.

With its commercial Hydro-Gear drivetrain, Kawasaki power, 60-inch deck, advanced four-wheel suspension and professional operator features, the STIHL RZ 560 K is designed for users who need substantially more capability than a conventional residential riding mower.

Key Features

Kawasaki Engine

The RZ 560 K is specifically manufactured with a Kawasaki engine, distinguishing it from the standard RZ 560 configuration.

60-Inch Commercial-Grade Cutting Deck

The large 60-inch deck provides high mowing productivity across expansive properties.

Hydro-Gear® ZT-3400 Transaxles

Commercial-grade hydrostatic transaxles provide responsive drive performance and zero-turn control.

Up to 10 MPH Forward Speed

Designed for professional productivity, the drivetrain allows speeds up to 10 MPH forward.

Up to 5 MPH Reverse Speed

Reverse travel capability reaches up to 5 MPH.

Four-Wheel Suspension System

Independent front suspension and rear shock absorbers help improve ride quality across uneven terrain.

Independent Front Suspension

Upper and lower control arms work with shock absorbers to help keep the front wheels properly oriented through suspension travel.

Deck Height Compensation

Front suspension incorporates mower-deck height compensation to support consistent mowing performance.

Foot-Operated Cutting Height

Cutting-height adjustments can be made conveniently from the operator position.

Two-Belt Deck Drive

The dual-belt mowing system reduces stress and flex on individual belts for improved durability.

Greaseable Mower Spindles

Serviceable mower-deck spindles support professional maintenance requirements.

Folding ROPS

A professional folding Roll Over Protection System is included as part of the machine configuration.

Dual USB-A Ports

Two USB-A charging ports provide up to 3.15 amps of charging capacity for compatible devices.

Technical Specifications

STIHL’s current documentation confirms the 60-inch deck, commercial Hydro-Gear ZT-3400 platform and RZ 560-series professional features; STIHL’s current information also distinguishes the RZ 560 K as the Kawasaki-engine version.

Cutting & Deck Configuration

Cutting Width: 60 Inches
Deck Classification: Commercial Grade
Standard Clipping Method: Side Discharge
Discharge Chute: Flexible Rubber
Deck Drive: Two-Belt
Spindles: Greaseable
Height Adjustment: Foot Operated
Service Access: Flip-Up Floor Pan

The flexible rubber discharge chute directs clippings away from the cutting path while offering more flexibility than a rigid chute assembly.

The two-belt mower drive is designed to reduce belt strain and operating temperature, supporting the durability expected in professional mowing environments.

Transmission & Drive Configuration

Transmission Type: Hydrostatic
Transaxle Series: Hydro-Gear® ZT-3400
Maximum Forward Speed: 10 MPH
Maximum Reverse Speed: 5 MPH
Steering: Dual Independent Control Levers
Turning Capability: Zero-Turn

Commercial-grade ZT-3400 transaxles provide the RZ 560 platform with smooth speed control and responsive maneuverability.

Suspension Configuration

Independent Front Suspension

The front system uses control arms connected to shock absorbers and is designed to allow the wheels to remain perpendicular to the terrain through their travel.

Rear Swingarm Suspension

Rear suspension incorporates shock absorbers to help stabilize the mower across uneven ground.

Mower Deck Height Compensation

The suspension architecture incorporates deck-height compensation to help maintain cutting consistency as the chassis responds to terrain changes.

What’s Included

The standard STIHL RZ 560 K mower configuration includes:

• 1 × STIHL RZ 560 K Commercial Zero-Turn Mower
• 1 × Kawasaki Gasoline Engine
• 1 × 60-Inch Commercial-Grade Mowing Deck
• Commercial-Grade Hydro-Gear® ZT-3400 Transaxles
• Standard Cutting Blades
• Flexible Side Rubber Discharge Chute
• Independent Front Suspension System
• Rear Swingarm Suspension with Shock Absorbers
• Foot-Operated Cutting-Height System
• Greaseable Mower-Deck Spindles
• Two-Belt Mower Drive System
• Flip-Up Floor Pan
• Deluxe Operator Seat with Armrests
• Dual-Function Hour Meter
• Integrated Cup Holders
• 2 × USB-A Charging Ports
• Folding ROPS
• Rear Trailer Hitch
• Fuel Gauge Visible From Operator Position
• Manufacturer Documentation
